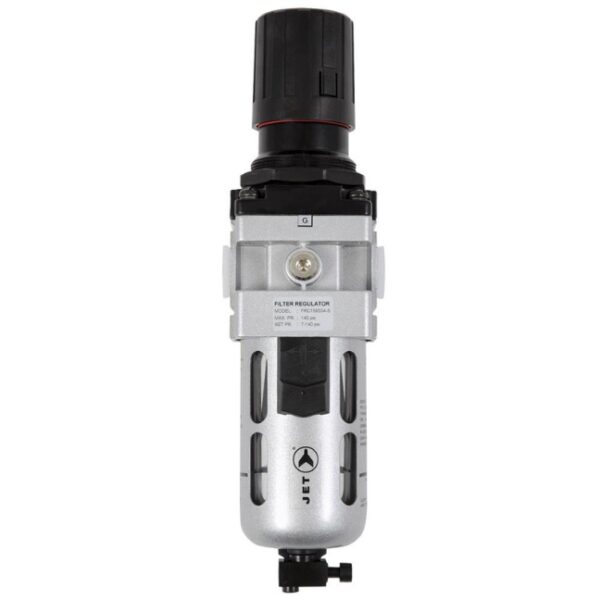

Jet 408885 AFRS12 Air Filter/Regulator Combination 1/2″ NPT

Description

Jet 408885 AFRS12 Air Filter/Regulator Combination 1/2″ NPT

Jet 408885 AFRS12 Air Filter/Regulator Combination 1/2″ NPT:

Features:

• Product no. 408885
• Model no. AFRS12
•  Air filter and regulator combined in one unit
• Air filter:
  • • • Designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
• Air regulator:
  • • • Governs air flow to desired PSI air pressure
      • Uses a Non Raising “Press to Lock” adjusting knob for locking at any set pressure
      • Works on a Diaphragm operated, relieving type mechanism
      • Pressure compensated by balanced poppet
• Modular Mounting
• Panel Mounting
• Wetted Components:
  • • • Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile

Specifications:

• Maximum Working Air Pressure: 145 PSI (10 Bar)
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 105 PSI (7 BAR)
• Set Pressure: 90 PSI (6 BAR)
• Pressure Drop: 17 PSI (1.0 BAR)
• Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
• Filter Bowl Size: 1.5 oz (44 ml)
• Height: 11.02″ (280 mm)
• Max. Flow: 106 CFM (3,000 LPM)
• Port Size: 1/2″
• Pressure Gauge Port Size: 1/8″
• Width: 2.76″ (70 mm)
