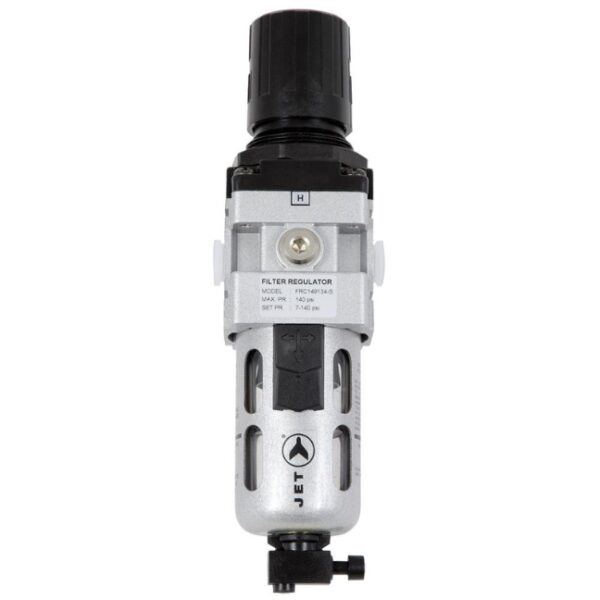

Jet 408882 AFRM14 Air Filter/Regulator Combination 1/4″ NPT

$90.05

Backorder

UOM: EA SKU: 408882 Categories: , , , UPC: 059629873267

Description

Jet 408882 AFRM14 Air Filter/Regulator Combination 1/4″ NPT

Jet 408882 AFRM14 Air Filter/Regulator Combination 1/4″ NPT:

Features:

  • Product no. 408882
  • Model no. AFRM14
  •  Air filter and regulator combined in one unit
  • Air filter:
        • Designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator:
        • Governs air flow to desired PSI air pressure
        • Uses a Non Raising “Press to Lock” adjusting knob for locking at any set pressure
        • Works on a Diaphragm operated, relieving type mechanism
        • Pressure compensated by balanced poppet
  • Modular Mounting
  • Panel Mounting
  • Wetted Components:
        • Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile

Specifications:

  • Maximum Working Air Pressure: 145 PSI (10 Bar)
  • Ambient Temperature: 0º C to 60º C (32º F to 140º F)
  • Inlet Pressure: 105 PSI (7 BAR)
  • Set Pressure: 90 PSI (6 BAR)
  • Pressure Drop: 17 PSI (1.0 BAR)
  • Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
  • Filter Bowl Size: 0.3 oz (9 ml)
  • Height: 6.69″ (170 mm)
  • Max. Flow: 20 CDFM (550 LPM)
  • Port Size: 1/4″
  • Pressure Gauge Port Size: 1/8″
  • Width: 1.57″ (40 mm)

Click here for more Jet Air Filters, Regulators and Lubricators

Additional information

Weight .78 lbs
