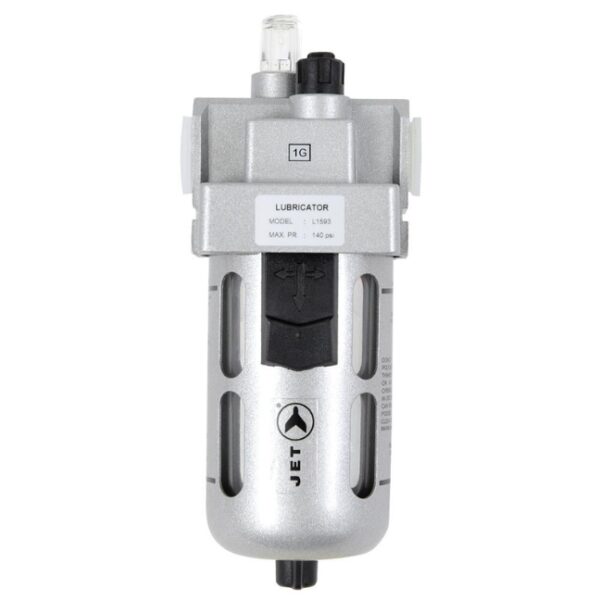

Jet 408842 ALS12 Air Lubricator 1/2″ NPT – Standard

Description

Jet 408842 ALS12 Air Lubricator 1/2″ NPT – Standard

Jet 408842 ALS12 Air Lubricator 1/2″ NPT – Standard:

Features:

• Product no. 408842
• Model no. ALS12
• Used to feed lubricants to pneumatic equipment
• Maintains a constant oil-to-air density over a wide range of flow
• Fog/ Micro Mist type: up to 50ft pipe runs
• Die Cast Aluminum Head
• Polycarbonate bowl with a steel bowl guard
• Head is fitted with:
  • • • Oil drop indicator
      • Oil drop controller
      • Oil filling plug
• Polycarbonate bowl with threaded steel bowl guard
• Sintered Bronze Filtering element
• Fully modular for easy maintenance
• Modular mounting
• Vertical mounting
• Designed for maximum flow
•  Maximum Working Air Pressure: 145 PSI
• Each unit is 100% factory tested and certified for guaranteed performance
• Conforms to ISO 6301-1
• Wetted Components:
  • • • Aluminum, brass, steel, acetal, stainless steel and nitrile

Specifications:

• Maximum Working Air Pressure: 145 PSI
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 90 PSI (6 BAR)
• Pressure Drop: 7.5 PSI (0.5 BAR)
• Lubricator Bowl Size: 5.13 oz (152 ml)
• Height: 7.48″ (190 mm)
• Max. Flow: 200 CFM (5,650 LPM
• Port Size: 1/2″
• Width: 2.75″ (70 mm)
• NOTE: 32 grade oil recommended for best performance
