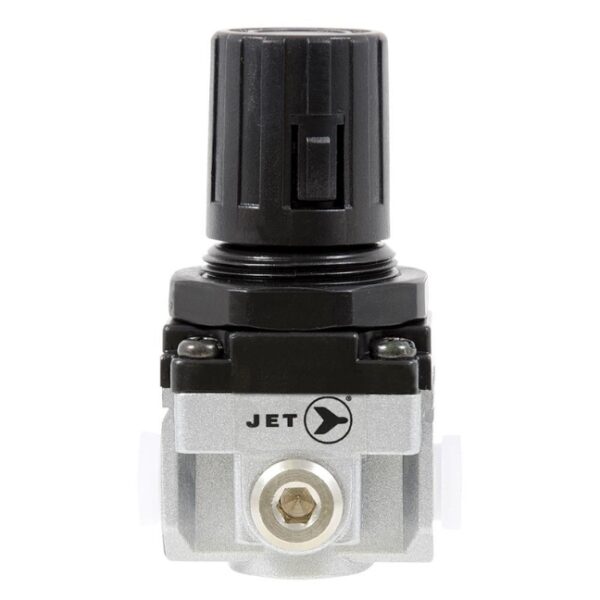

Jet 408817 ARM18 1/8″ NPT Miniature Air Regular
Jet 408817 ARM18 1/8″ NPT Miniature Air Regular:
Features:
- Product no. 408817
- Article no. ARM18
- Inlet pressure: 105 PSI (7 BAR)
- Supply pressure: 90 PSI (6 BAR)
- Pressure drop: 17 PSI (1 BAR)
- Industrial construction Aluminum die cast body:
-
-
- 9 times safer than a plastic body
- Allows use at higher temperatures and better tightening of piping without stripping the threads
-
-
- Used to maintain steady outlet pressure unaffected by variations in inlet pressure
- Works on a Diaphragm operated, relieving type mechanism:
-
-
- With pressure compensated by balanced poppet
- Can be installed in any position
-
-
- Regulator with Non Raising “Press to Lock” adjusting knob
- Maximum Working Air Pressure: 220 PSI
- Ambient Temperature: 0-60°C (32-140°F)
- Modular Mounting
- Panel Mounting
- Conforms to ISO 6953-1
- Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
Specifications:
- Inlet pressure: 105 PSI (7 BAR)
- Supply pressure: 90 PSI (6 BAR)
- Pressure drop: 17 PSI (1 BAR)
- Height: 3.19″ (81 mm)
- Max. Flow: 21 CFM (600 LPM)
- Pressure Gauge Port Size: 1/8″
- Width: 1.57″ (40 mm)
