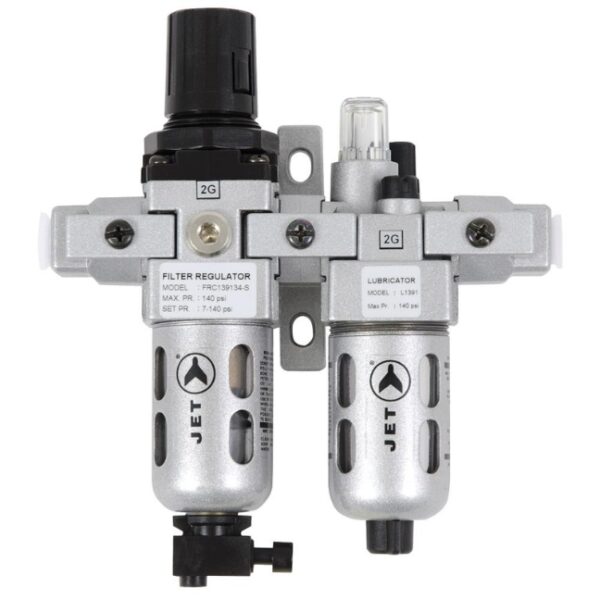

Jet 408801 AFRLCM14 2-Piece Air Filter/Regulator and Lubricator 1/4″ NPT

Description

Jet 408801 AFRLCM14 2-Piece Air Filter/Regulator and Lubricator 1/4″ NPT

Jet 408801 AFRLCM14 2-Piece Air Filter/Regulator and Lubricator 1/4″ NPT:

Features:

• Product no. 408801
• Model no. AFRLCM14
• Space saving 2 piece modular filter, regulator combination and lubricator
• By far the most popular air preparation unit
• A combination of 2 Modular units:
  • • • Filter/Regulator and Lubricator
      • Connected together using a spacer block
      • With a built-in wall mounting bracket and piping adaptors
• Air filter:
  • • • Designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
• Air regulator:
  • • • Governs air flow to desired PSI air pressure
• Lubricator:
  • • • Indispensable for air generated equipment
      • Atomizes lubricant into the compressed air
      • Allows air to reach and lubricate the internal parts of the air tool
• Modular Mounting
• Vertical Mounting
• Wetted Components:
  • • • Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile

Specifications:

• Maximum Working Air Pressure: 145 PSI
• Ambient Temperature: 0º C to 60º C (32º F to 140º F)
• Inlet Pressure: 105 PSI (7 BAR)
• Set Pressure:90 PSI (6 BAR)
• Pressure Drop:17 PSI (1.0 BAR)
• Pressure Adjustment Range: 7 to 145 PSI (0.5 to 10 BAR)
• Filter Bowl Size: 0.3 oz (9 ml)
• Lubricator Bowl Size: 0.68 oz (20 ml)
• Height: 6.69″ (170 mm)
• Max. Flow: 18 CFM (500 LPM)
• Port Size: 1/8″
• Width: 5.75″ (146 mm)
• NOTE: 32 grade oil recommended for best performance
