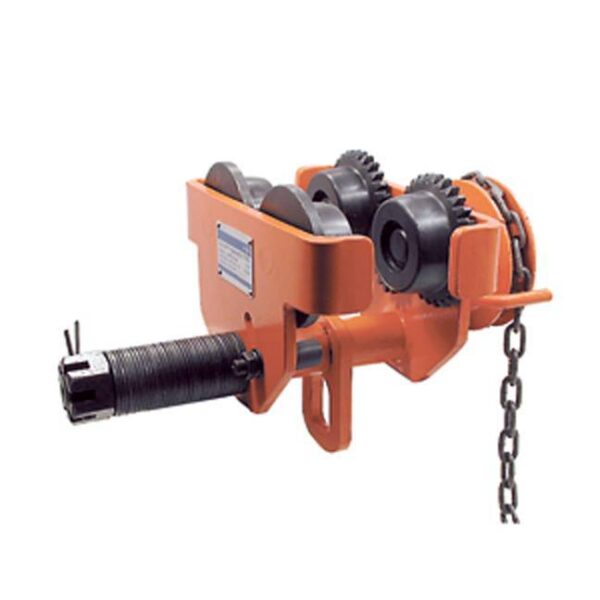

Jet 120366 5 Ton SGT Series Geared Trolley – Heavy Duty
The Jet 120366 5 Ton SGT Series Geared Trolley – Heavy Duty:
- Geared wheels driven by hand chain provide precise load control
- 10 ft. hand chain drop
| SGT Series Manual Trolley Specifications and Comparison Chart | ||||||
| Product no. | Rated Capacity (tons) | Rated Capacity (lbs) | I-Beam Flange Width | Minimum Radius Curve | Diameter & Length of Chain | Weight lbs (kg) |
| 120362 | 1 | 2,200 | 4″ to 8-1/32″ | 40″ | 3/16″ x 10 ft | 43.7 (19.8) |
| 120364 | 2 | 4,400 | 4″ to 8-1/32″ | 43″ | 3/16″ x 10 ft | 66 (30) |
| 120365 | 3 | 6,600 | 4″ to 8-1/32″ | 51″ | 3/16″ x 10 ft | 109.2 (49.7) |
| 120366 | 5 | 11,000 | 4-1/2″ to 8-1/32″ | 55″ | 3/16″ x 10 ft | 140.8 (64) |
| 120367 | 10 | 22,000 | 4-15/16″ to 8-1/32″ | 67″ | 3/16″ x 10 ft | 253.4 (115.2) |

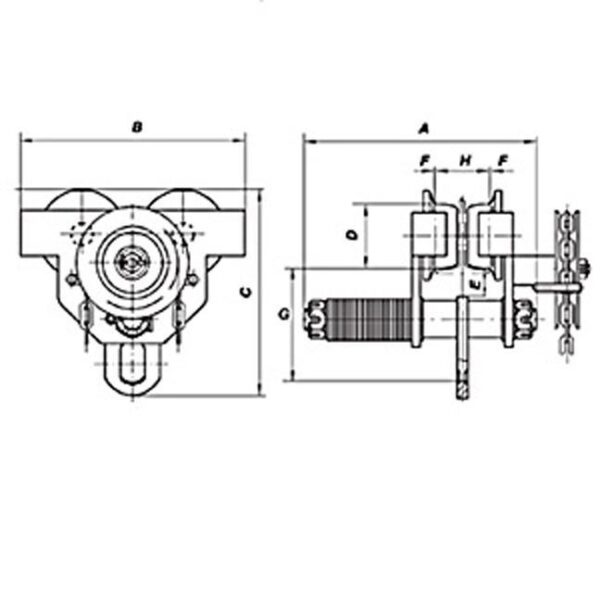

| Trolley Dimensions | |||||||
| Rated Capacity (tons) | A | B | C | D | E | F | G |
| 1 | 13-1/8″ | 10-1/4″ | 9-3/8″ | 2-15/16″ | 1-1/4″ | 1/8″ | 5-13/64″ |
| 2 | 13-29/32″ | 11-7/8″ | 10-15/16″ | 3-1/2″ | 1-1/16″ | 1/8″ | 6-1/16″ |
| 3 | 14-5/8″ | 13-1/2″ | 13-15/16″ | 4-5/16″ | 13/16″ | 1/8″ | 7-21/32″ |
| 5 | 15-15/32″ | 15-3/8″ | 15-29/32″ | 4-3/4″ | 13/16″ | 1/8″ | 8-3/4″ |
| 10 | 17-11/64″ | 18-1/2″ | 19-5/8″ | 5-29/32″ | 1-3/4″ | 1/8″ | 11″ |
Optional Extension Shaft Kits:
- For converting trolleys for use on beams with flange widths from 8″ to 12″
- Includes suspension shaft, washers, castle nuts and split pins
- Fit SBT and SGT series trolleys
| Optional Extension Shaft Kits for SBT & SGT trolleys | ||
| Product no. | Model no. | Works on |
| 124202 | JTES-0512 | 1/2 ton trolleys |
| 124203 | JTES-1012 | 1 ton trolleys |
| 124204 | JTES-1512 | 1.5 ton trolleys |
| 124205 | JTES-2012 | 2 ton trolleys |
| 124206 | JTES-3012 | 3 ton trolleys |
| 124207 | JTES-5012 | 5 ton trolleys |
| 124208 | JTES-10012 | 10 ton trolleys |
