Jet 107262 FA-0.55 1/2-Ton FA Series Chain Hoist – 15ft. Lift 575V
Jet 107262 FA-0.55 1/2-Ton FA Series Chain Hoist – 15ft. Lift 575V:
Features:
- Product no. 107262
- Article no. FA-0.55
- 1/2-Ton (1,100 lb) Capacity
- Three phase hoist:
-
-
- Features reverse phase protection
-
-
- Chain is heat treated
- Case hardened low wear chain surpassing ISO Class T
- Complete with chain collector bucket
- Reliable electro-magnetic DC brake engages automatically when power is cut off
- Two button pendant control automatically returns to OFF mode when either button is released
- 24 volt pendant control for operator safety in damp or humid conditions
- Strain relief cable protects electrical connections
- Top and bottom safety hooks designed to bend slowly to warn of overloads
- Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
- Gear train and electrical components completely sealed for use outdoors (cover recommended)
- Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
- Reverse phase protection
- Meets ASME B30.16, CSA, and OSHA standards
Specifications:
- Amperes: 1.4
- Duty Rating: 30 min
- Head Room: 18.9″
- Hoisting Speed: 28 FPM
- Motor Power: 1.2 HP
- Number of Falls: 1
- Power Cable Length: 16ft
- Power Source: 3 ph
- Product Weight: 93 lb (41.85 kg)
- Rated Lifting Capacity: 1,100 lb
- Rated Lifting Capacity: 1/2 T
- Shipping Weight: 98 lb (44.1 kg)
- Standard Chain Bucket: #2
- Standard Lift: 15ft
- Voltage: 575 V

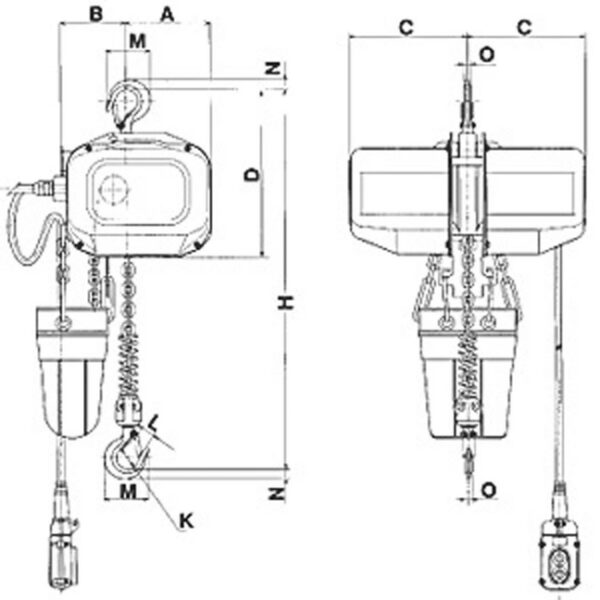

- Dimensions (see accompanying diagram):
-
-
- A: 6.34″
- B: 4.88″
- C: 8.82″
- D: 12.24″
- H: 18.90″
- K: 1.42″
- L: 1.30″
- M: 3.39″
- N: 0.94″
- O: 0.75″
-
-
