Fluke 4695814 902FC True-RMS HVAC Clamp Meter

$530.39

Model no. 902FC

Only 2 Available (can be backordered)

UOM: EA SKU: 4695814 Categories: , , UPC: 095969798341

Description

Fluke 4695814 902FC True-RMS HVAC Clamp Meter

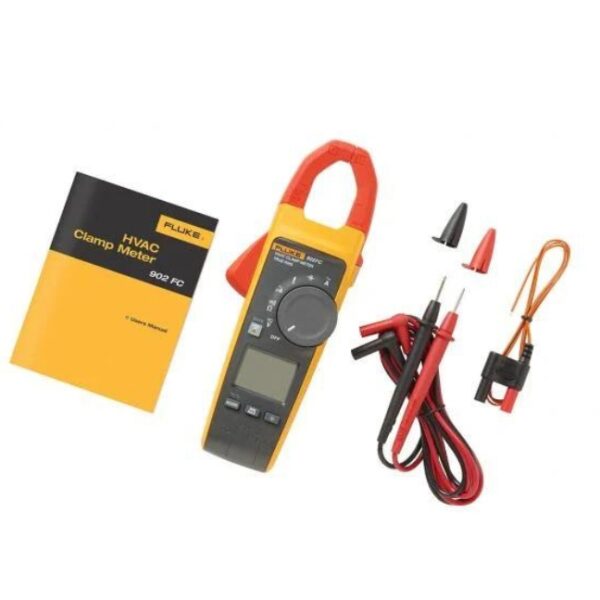

The Fluke 4695814 902FC True-RMS HVAC Clamp Meter comes with:

  • TL75 test leads (1 pair)
  • 80BK integrated DMM temperature probe
  • 2 – AA alkaline batteries
  • Soft carrying case
  • User’s manual
  • Statement of calibration

Features:

  • Model no. 902FC
  • Item no. 4695814
  • A wireless Fluke Connect®-enabled clamp meter
  • Designed specifically for the needs of HVAC technicians
  • Offers 200 µA DC current measurements to measure flame rod
  • Extends resistance range to measure thermistors up to 60kΩ
  • Captures flue gas temperature
  • Measures start and run motor capacitors
  • Measures variable frequency drive performance

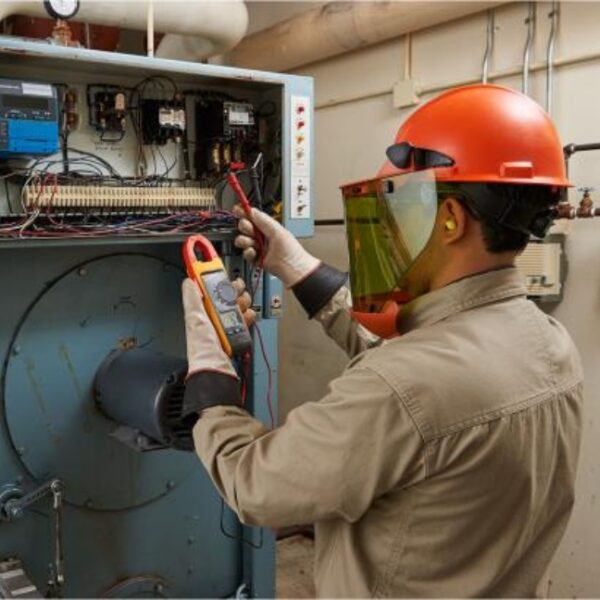

  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
  • Large, easy-to-read backlit display improves readings in low light settings
  • Comes with a TPAK magnetic hanging strap, batteries soft carrying case, and three-year warranty

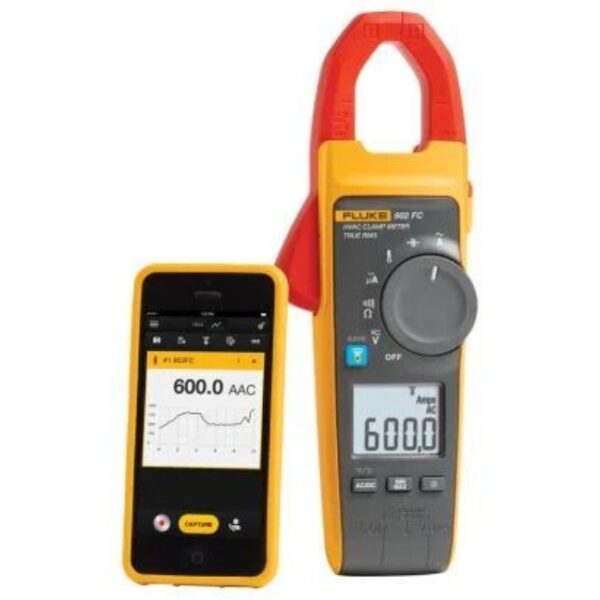

  • Connects to your smartphone via Fluke Connect so you can read measurements at a safer distance
  • Offers True-RMS voltage and current measurements to accurately measure non-linear signals
  • Offers Min/Max recording to capture variations automatically
  • Runs on two AA alkaline batteries

Measures:

  • AC current to 600 A and AC and DC voltage to 600 V
  • Capacitance to 1000 µF and DC current to 200 µA
  • Temperature from -10 °C to 400 °C (14 °F to 752 °F)
  • Resistance to 60 kΩ
Function
A ac (via Jaw)
Resolution 0.01/0.1 A
Accuracy 2.0% ±5 digit (45-65 Hz)
2.5% ±5 digit (65-400 Hz)
Range 60.00/600.0 A
Crest Factor (50Hz or 60Hz) 2.5 MIN@220 A
3.0 MIN@180 A
> 1.4 MIN@600 A
Add 2% for CF>400 A
V ac
Resolution 0.1 V
Accuracy 1.5% ±5 digits
Range 600.0 V
V dc
Resolution 0.1 V
Accuracy 1.5% ±5 digits
Range 600.0 V
Ohms
Resolution 0.1/1/10
Accuracy 1% ±5 digits
Range 600/6000/60.00 kΩ
Capacitance
Resolution 0.1/1 µF
Accuracy 1% ±4 digits
Range 100.0/1000 µF
µA
Resolution 0.1 µA
Accuracy 1% ±5 digits
Range 200 µA
Contact temperature
Resolution 0.1 C/F
Accuracy 1% ±8 digits
Range -40 to 400 °C (-40 °F to 752 °F)
Continuity beeper
Beeper volume 75 dBA nom. 15 cm. from case front
On threshold <=30 Ω
Mechanical and General Specifications
Maximum voltage between any terminal and earth ground 1000 V
Battery type 2 AA alkaline batteries, NEDA 15A, IEC LR6
Temperature Operating: -10 °C to +50 °C (14 °F to +122 °F)
Storage: -40 °C to +60 °C (-40 °F to +140 °F)
Operating humidity Non condensing (< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F))
Altitude Operating: 3,000 m (9,842 ft)
Storage: 12,000 m (39,370 ft)
Dimensions 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
Weight (meter only) 419 g (15 oz)
Safety IEC 61010-1, Pollution Degree 2
IEC61010-2-032: CAT III 1000 V / CAT IV 600 V
IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
IP Rating IEC 60529: IP30, non-operating
Radio Frequency Certification FCC ID:T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC) International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature coefficients Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
