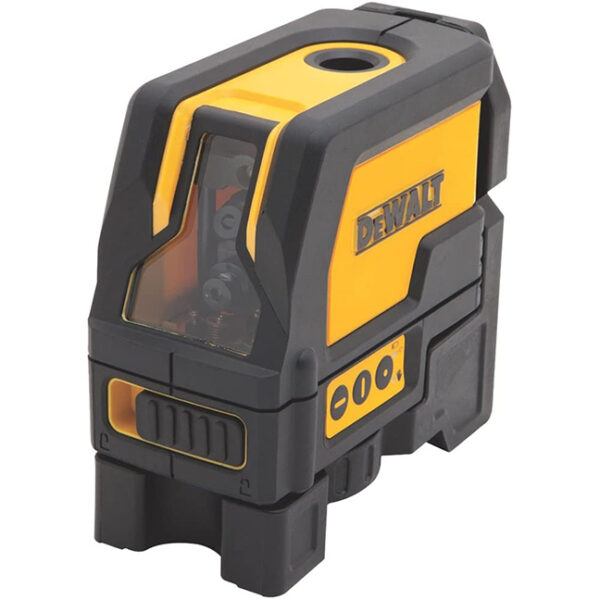

DeWalt DW0822 Self-Leveling Cross Line / Plumb Spot Combination Laser

Description

DeWalt DW0822 Self-Leveling Cross Line / Plumb Spot Combination Laser

The DeWalt DW0822 Self-Leveling Cross Line / Plumb Spot Combination Laser:

• Product no. DW0822
• Projects bright crossing horizontal and vertical lines
• 2 Bright, self leveling beams provide accurate plumb point transfer
• Integrated magnetic pivoting base with 1/4″ thread front
• Rear mounted magnets allow flush attachment to metal track and steel
• Runs on 3 x AA batteries

Specifications:

• Light Source: Semiconductor laser diode
• Laser Wavelength: 630 to 680 nm visible
• Laser Power: <1.0 mW (each beam) CLASS 2 LASER PRODUCT
• Working Range: ±50ft (15 m) / (165ft with detector)
• Accuracy:
  • • • Up: ± 3/16″ @ 50′ (± 4.5 mm @ 15 m)
      • Horizontal: ± 1/8″ @ 50′ (± 3 mm @ 15 m)
      • Vertical: ± 1/8″ @ 50′ (± 3 mm @ 15 m)
• Indicators:
  • • • Flashing Indicator: battery low
      • Flashing Laser: tilt range exceeded
• Power Source: 3 AA size batteries (4.5V DC)
• Operating Temperature: 20 °F to 120 °F (-10 °C to 50 °C)
• Storage Temperature: -5 °F to 140 °F (-20 °C to 60 °C)
• Environmental: IP54

Typical Applications:

• Joists Install
• Laying Boards
• Plumbing frame
• Tile Backsplash
• Fireplace
• Bathroom tile
• Plumb Walls
• Cuts outs
• Level Countertops
• Cabinet Install
• Drywall Cutouts
• porch/deck can lights
• Interior Can Lights
• Running wire
• vertically aligned lighting
• Running Plumbing pipe
• Use as baseline
• Trim
• Crown Molding
