DeWalt DCLE34030G 20V MAX 3×360º Green Line Laser Kit



UOM: EA SKU: DCLE34030G Categories: , , UPC: 076174773743


DeWalt DCLE34030G 20V MAX 3×360º Green Line Laser Kit

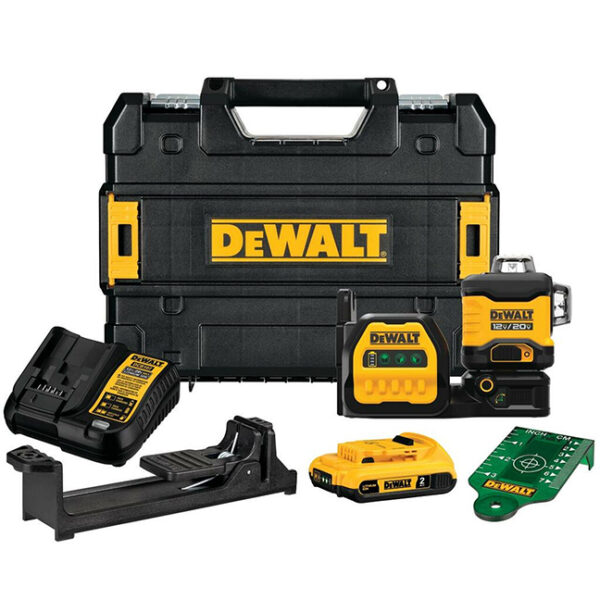

The DeWalt DCLE34030G 20V MAX 3×360º Green Line Laser Kit includes:

  • DCB127 12V MAX XR 2.0Ah Battery
  • DCB107 Charger
  • Drop Ceiling Attachment
  • Target Card
  • TSTAK Carrying Case

Also available as a tool only – no battery or charger: DCLE34030GB


  • Product no. DCLE34030G
  • Accurate within 1/8″ at 30 ft. to achieve plum lines
  • 230 ft. (70m) Visible distance
  • 330 ft. (100m) max Detector range
        • On average when used with DW0982G detector (sold separately)
  • Fine adjustment knob for precise positioning
  • 10 hours of runtime on single 20V MAX 2.0Ah battery with all 3 laser lines in use
  • Longer runtime with larger capacity batteries
  • Integrated magnetic pivoting base with 1/4″ – 20, 5/8″ – 11 thread for use with tripod (DW0737 sold separately)
  • Overmolded case and IP54 rating for dust and splash protection (Applies to tool, not battery or charger)
  • 3 Year Limited Warranty
  • 1 Year Free Service
  • 90 Day Money Back Guarantee


  • Light source: Laser diodes
  • Visible Range 100 feet
  • Working Range 165 feet
  • Accuracy:+/-0.125″
  • Laser length: 510nm to 530 nm visible
  • Laser power: ≤1.50mW (each beam) Class 2 Laser Product
  • Working range: 30m (±100ft) / 50m (165ft) with detector
  • Plumb Accuracy: ±1/8” per 30ft (±3.1mm per 9m)
  • Level Accuracy: ±1/8” per 30ft (±3.1mm per 9m)
  • Power source: 12V or 20V DeWalt Battery Pack
  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Storage Temperature: -5°F to 140°F (-20°C to 60°C)
  • Water & Dust Resistant to IP54

Typical Applications:

  • Framing
  • Drywall
  • MEP
  • Builder
  • Remodeler

Click here for more DeWalt lasers

Additional information

Weight 10 lbs
