Milwaukee 2236-20NST Clamp Meter for HVAC/R


Special Order Item (Ships within 10-14 Business Days)

Available on backorder

SKU: 2236-20NST Categories: , ,


Milwaukee 2236-20NST Clamp Meter for HVAC/R

The Milwaukee 2236-20NST Clamp Meter for HVAC/R comes with:

  • NIST Certificate of Calibration with Data
  • Electrical test lead set
  • Dual banana thermocouple
  • 2 – AA batteries

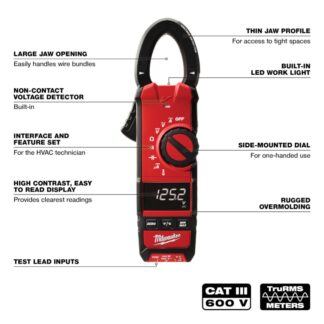

Features and Specifications:

  • A True-RMS electrical tester for accurate measurement in all applications
  • An NIST Certificate of Calibration with Data is included (needed by many organizations as proof of calibration with the date when NIST Calibration was performed)
  • Wide 1.30″ fork opening
  • Thin jaw profile makes taking measurements in panels or in bundles easier
  • Measures current up to 600 amps
  • Measures voltage range up to 600 volts AC/DC
  • Thermocouple (dual banana) input for contact temperature measurement
  • Built-in voltage detector
  • LED job light
  • Easy-read high contrast, white-on-black display with backlight
  • Durable over-molding increases user grip
  • Runs on AA alkaline batteries
  • Safety rating: CAT III 600V
  • Flame rectification: 600 μA DC
  • Microamps DC: 600 μA
  • Voltage AC/DC: 600V
  • Resistance: 6kΩ
  • Continuity: Yes
  • Capacitance: Yes
  • Contact temperature range: -40°F to 752°F (-40°C to 400°C)
  • Indication: Visual (for NCVD)
  • Switch type: Dial
  • Length: 9-1/2″”
  • Tool warranty: 5 years

Click here for a selection of Milwaukee electronic instruments.

Additional information

Weight 1.54 lbs
