Description

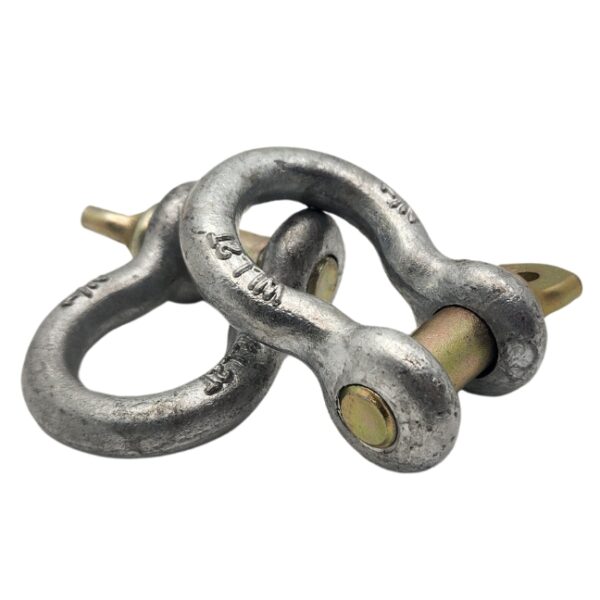

Golden Screw Pin Anchor Shackles
- Meet the performance requirements of U.S. Fed. Spec. RR-C-271D, Type 4A, Grade A, Class 2
- Bows are heat treated carbon steel and tempered – with Alloy pins
- Hot dipped galvanized for excellent corrosion resistance
- Design factor 6:1
- Metallic coating of shackle pins allows closer thread tolerance than for shackles with an extra layer of paint
To assure total traceability and to exceed the requirements of ASME B30.26, Golden Pin Shackle bodies are embossed with:
- WLL (Working Load Limit)
- Size
- Trace code
Golden Pin shackle pins are stamped with:
- Alloy Pin I.D. WLL (HS)
- Trace code
- Yellow chromated for instant recognition
| Size (inches) |
Pin Diameter (inches) |
WLL (tons) |
| 3/16 | 1/4 | 1/3 |
| 1/4 | 5/16 | 1/2 |
| 5/16 | 3/8 | 3/4 |
| 3/8 | 7/16 | 1 |
| 7/16 | 1/2 | 1-1/2 |
| 1/2 | 5/8 | 2 |
| 5/8 | 3/4 | 3-1/4 |
| 3/4 | 7/8 | 4-3/4 |
| 7/8 | 1 | 6-1/2 |
| 1 | 1-1/8 | 8-1/2 |
| 1-1/8 | 1-1/4 | 9-1/2 |
| 1-1/4 | 1-3/8 | 12 |
