Forged Jaw & Jaw Turnbuckles w/Locknuts

$8.95$103.50

Hot Dipped Galvanized
3/8" x 6"

$8.95

1/2" x 9"

$15.00

1/2" x 12"

$31.50

5/8" x 6"

$20.00

5/8" x 9"

$37.80

5/8" x 12"

$25.00

3/4" x 18"

$57.60

7/8" x 12"

$86.00

1" x 12"

$103.50

1" x 18"

$93.80

Forged Jaw & Jaw Turnbuckles w/Locknuts

Forged Jaw & Jaw Turnbuckles

$8.95$103.50

Clear
SKU: N/A Categories: ,

Product Description

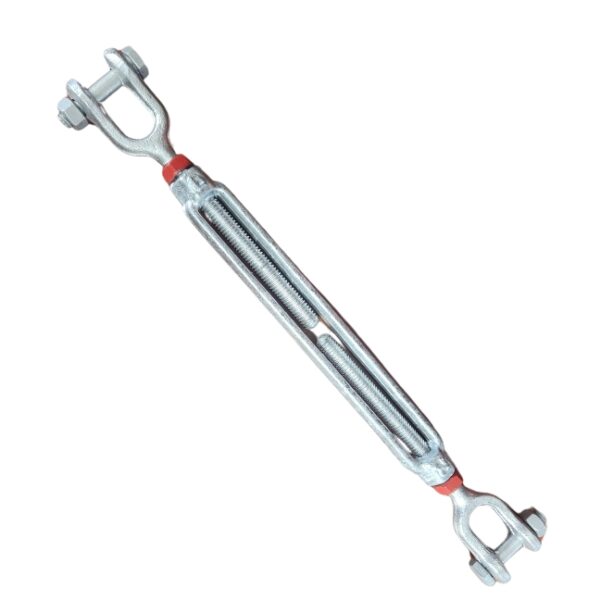

Forged Jaw & Jaw Turnbuckles w/Locknuts

  • Meet the requirements of U.S. Federal Specification FF-T-791B Type 1, Form 1 (open body)
  • Permanently embossed for traceability to meet ASME B30.26
  • Hexagon heads are forged into the bodies to permit fast and easy adjustments
  • Forged carbon steel
  • Bodies are heat-treated by normalizing, end-fitting quenched and tempered
  • Hot dipped galvanized (HDG)
  • UNC threads
  • Design factor proof load 2.5:1, ultimate load 5:1
Turnbuckle dimensions jaw to jaw



Dimensions (inches) Working Load Limit (WLL)
lbs
Product no. Diameter x Take-Up
A x G
B C D
Open
E
Closed
F
Open
292510241 3/8 x 6 0.74 1.04 17.63 11.38 2.52 1,200
292510321 1/2 x 6 0.65 1.08 19.09 13.19 2.71 2,200
292520321 1/2 x 9 0.61 1.10 23.95 15.95 2.65 2,200
292530321 1/2 x 12 0.66 1.07 30.90 19.00 2.72 2,200
292510401 5/8 x 6 0.77 1.46 22.13 14.89 3.43 3,500
292520401 5/8 x 9 0.95 1.46 27.20 18.31 3.70 3,500
292530402 5/8 x 12 0.77 1.42 32.99 21.26 3.70 3,500
292540481 3/4 x 18 0.90 1.61 49.29 29.53 4.56 5,200
292530561 7/8 x 12 1.24 2.01 36.25 24.62 5.00 7,200
 292540561 7/8 x 18 1.23 1.75 50.17 30.30 4.86 7,200
292531001 1 x 12 1.40 2.19 38.00 26.50 5.84 10,000
292541001 1 x 18 1.21 2.07 51.00 33.00 6.01 10.000



Additional Information

Size

3/8″ x 6″, 1/2″ x 6″, 1/2″ x 9″, 1/2″ x 12″, 5/8″ x 6″, 5/8″ x 9″, 5/8″ x 12″, 3/4″ x 6″, 3/4″ x 9″, 3/4″ x 12″, 3/4″ x 18″, 7/8″ x 12″, 7/8″ x 18″, 1″ x 12″, 1″ x 18″, 1″ x 24″, 1-1/4″ x 12″, 1-1/4″ x 18″, 1-1/2″ x 12″, 1-1/2″ x 18″, 1-1/2″ x 24″, 2″ x 24″
