Description

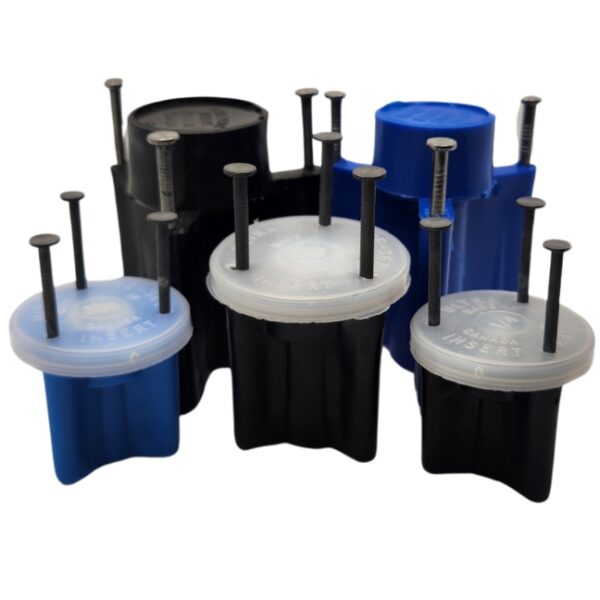

Victory Plastics Ultra Preset Anchors
Victory Plastics Ultra Preset Anchors:
Features:
- SKU’s and Sizes:
-
-
- ANTUPI-14: 1/4″
- ANTUPI-38: 3/8″
- ANTUPI-12: 1/2″
- ANTUPI-58: 5/8″
- ANTUPI-34: 3/4″
-
-
- Faster Lay Out
- Minimum Tool Requirement
- Multiple Sizes
- No Anchor Failure due to Improper Setting
- Will not corrode:
-
-
- Flanged steel insert is completely enclosed from moisture
-
-
- No stress will be placed on the concrete:
-
-
- Compared to drop-ins which are expanded by putting pressure on the side of the drilled holes
-
-
- No chance of drilling into pre-stressed cables
- Tapered nylon body:
-
-
- Provides a larger holding area in the concrete compared to other drop-ins
-
-
Specifications:
- Body Material: High Impact HDPE
- Nut Material: Grade 5

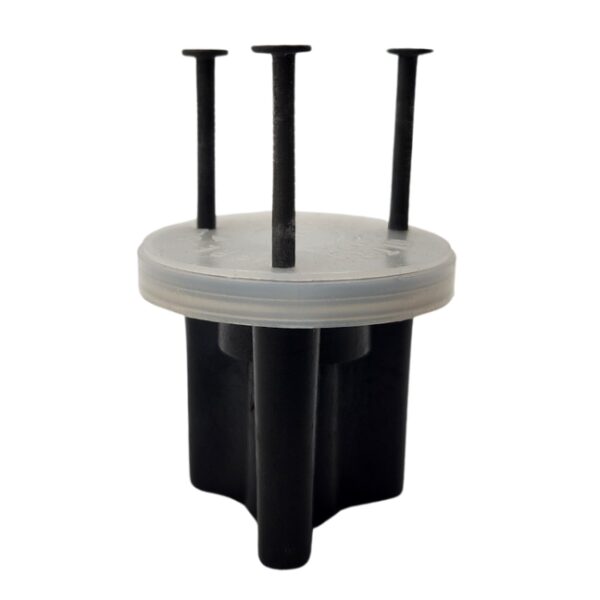

- ANTUPI-14:
-
-
- Size: 1/4″
- Lab Pull Test: 2,800 lbs
- Weight per 100 pieces: 8 lbs / 3.6 kg
-
-

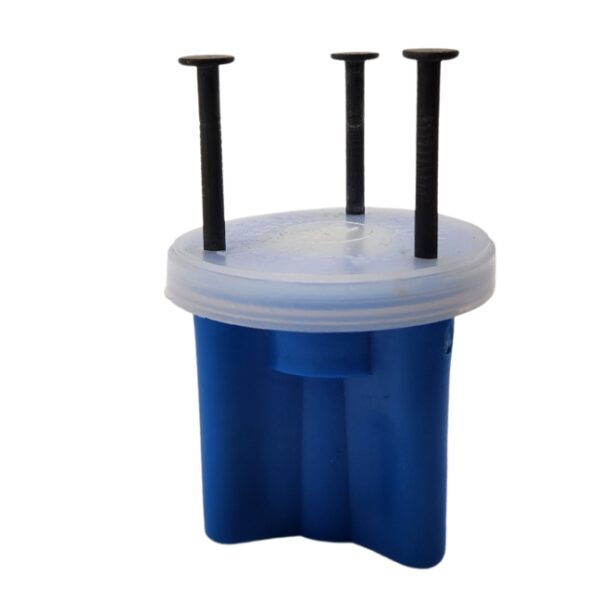

- ANTUPI-38:
-
-
- Size: 3/8″
- Lab Pull Test: 4,300 lbs
- Weight per 100 pieces: 9 lbs / 4 kg
-
-

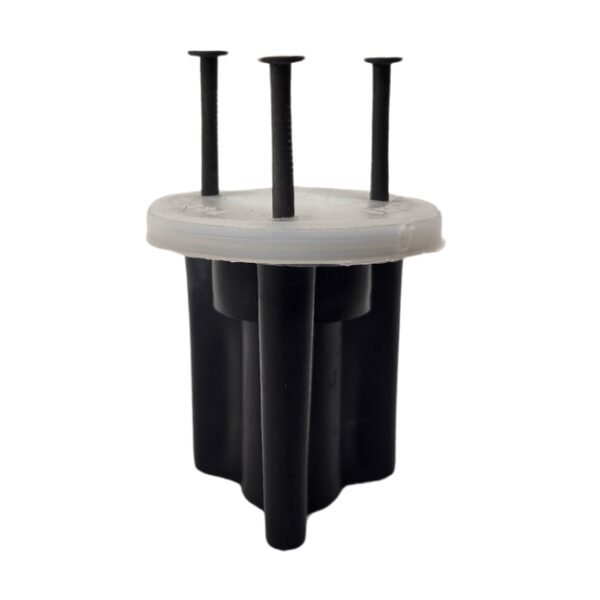

- ANTUPI-12:
-
-
- Size: 1/2″
- Lab Pull Test: 4,800 lbs
- Weight per 100 pieces: 16 lbs / 7.3 kg
-
-

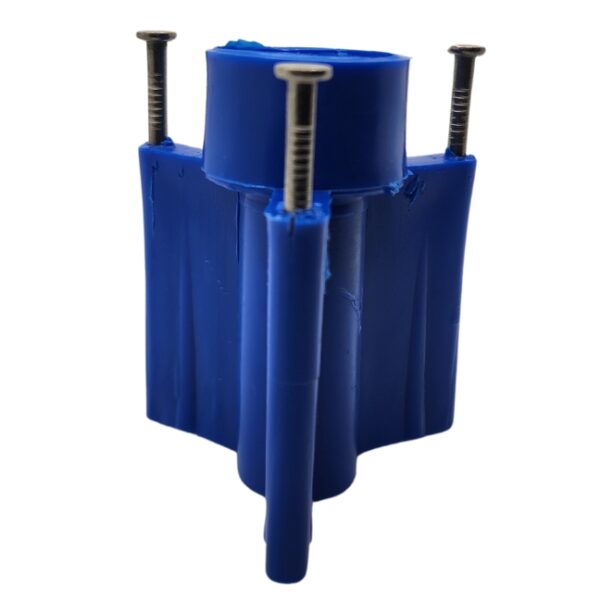

- ANTUPI-58:
-
-
- Size: 5/8″
- Lab Pull Test: 9,950 lbs
- Weight per 100 pieces: 24 lbs / 11 kg
-
-

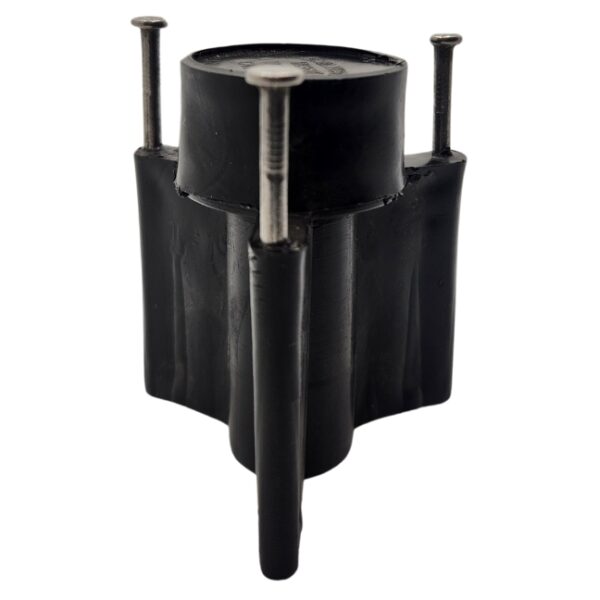

- ANTUPI-34:
-
-
- Size: 3/4″
- Lab Pull Test: 7,560 lbs
- Weight per 100 pieces: 35 lbs / 16 kg
-
-
