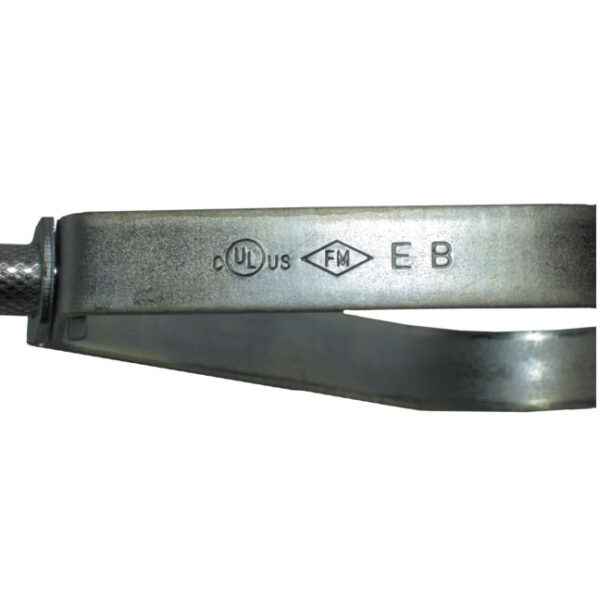

Swivel Ring Hangers
Swivel Ring Hangers – Pre Galvanized:
- Recommended for suspending stationary non-insulated pipe lines
- Used for supporting sprinkler piping in fire protection applications
- Threaded swivel insert nut to allow for height adjustment after installation
- Constructed of zinc plated carbon steel
-
FM and UL approved
SWIVEL RING HANGERS – Pre-Galvanized |
||||||
| Iron pipe size |
SPECIFICATION DATA | Rec. Max. load (lbs) |
||||
| A | B | C | D | E | ||
| 1/2″ | 3/8″ | 2-15/16″ | 1-7/8″ | 3-3/8″ | 1-7/16″ | 400 |
| 3/4″ | 3/8″ | 2-7/8″ | 1-7/8″ | 3-3/8″ | 1-11/32″ | 400 |
| 1″ | 3/8″ | 2-7/8″ | 1-7/8″ | 3-1/2″ | 1-7/32″ | 400 |
| 1-1/4″ | 3/8″ | 3-1/16″ | 1-15/16″ | 3-7/8″ | 1-1/8″ | 400 |
| 1-1/2″ | 3/8″ | 3-3/16″ | 2-1/8″ | 4-1/8″ | 1-3/16″ | 400 |
| 2″ | 3/8″ | 3-7/16″ | 2-7/16″ | 4-5/8″ | 1-1/4″ | 400 |
| 2-1/2″ | 3/8″ | 3-13/16″ | 2-3/4″ | 5-1/4″ | 1-1/4″ | 600 |
| 3″ | 3/8″ | 4″ | 3″ | 5-3/4″ | 1-3/8″ | 600 |
| 4″ | 3/8″ | 4-3/4″ | 3-3/4″ | 7″ | 1-1/2″ | 1000 |
| 5″ | 1/2″ | 6″ | 4-3/4″ | 8-3/4″ | 1-15/16″ | 1000 |
| 6″ | 1/2″ | 6-9-16″ | 5-1/4″ | 9-7/8″ | 1-15/16″ | 1250 |
| 8″ | 1/2″ | 7-13/16″ | 6-5/8″ | 12-1/8″ | 2-5/16″ | 1250 |
