Strongarm 033078 SACH302 30 Metric Ton Hollow Centre Single Acting Cylinder

Description

Strongarm 033078 SACH302 30 Metric Ton Hollow Centre Single Acting Cylinder

Strongarm 033078 SACH302 30 Metric Ton Hollow Centre Single Acting Cylinder:

Features:

• Product no. 033078
• Model no. SACH302
• Hollow plunger design allows both push and pull forces
• Complies with ASME B-30.1
• Made of durable, high strength alloy steel for added safety
• Single acting spring return
• Comes with high quality 3/8″-18 NPT quick couplings
• Collar and plunger threads allow fixture attachment
• Finished in baked enamel for excellent corrosion resistance

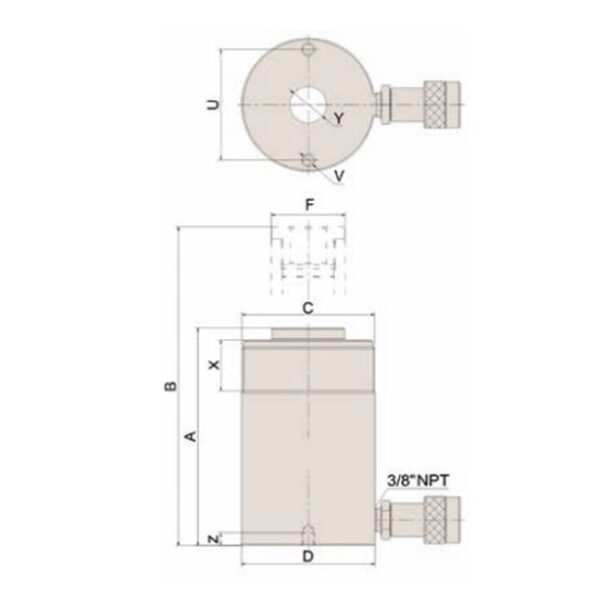

Specifications:

• Base Fixturing Holes:
  • • • Bolt Circle (U): 3.63″
      • Thread Depth (Z): 0.55″
      • Thread (V): 3/8″-16UNC
• Capacity @ 700 Bar (10,000 PSI): 30 Ton
• Centre Hole Diameter (Y): 1.31″
• Collapsed Height (A): 7.01″
• Collar Thread (C): 4-1/2″ – 12
• Collar Thread Length (X): 1.65″
• Duty Level: Super Heavy Duty
• Effective Area: 7.39 in²
• Extended Height (B): 9.53″
• Oil Capacity: 18.62 in³
• Outside Diameter (D): 4.53″
• Piston Rod Diameter (F): 2.56″
• Rated Capacity: 30 T
• Spring Return: Yes
• Stroke Length: 2.52″
