Strongarm 033014 SACS1010 10 Metric Ton Single Acting Cylinder

Description

Strongarm 033014 SACS1010 10 Metric Ton Single Acting Cylinder

Strongarm 033014 SACS1010 10 Metric Ton Single Acting Cylinder:

Features:

• Product no. 033014
• Model no. SACS1010
• Made of high strength alloy steel for safety and durability
• Complies with ANSI specifications
• Inside cylinder is treated to ensure and enhance durability
• Collar threads, plunger threads and base mounting holes are provided for attaching optional fixtures
• Heavy duty plunger return spring
• 3/8″-18 NPT quick coupling included
• Baked enamel finish increases corrosion resistance

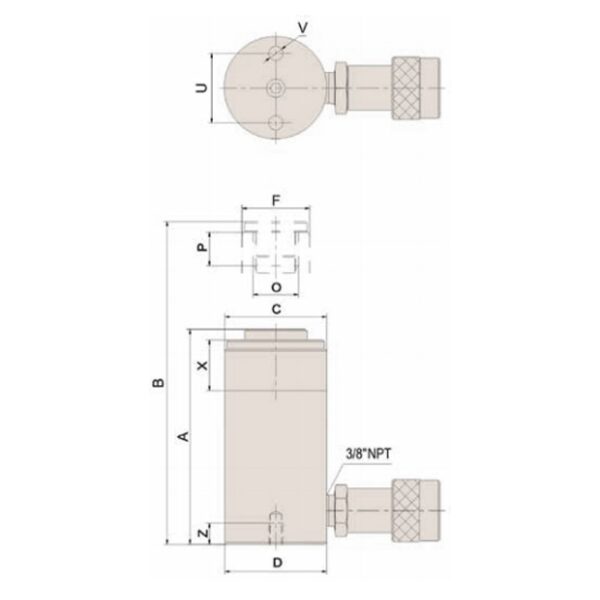

Specifications:

• Base Fixturing Holes:
  • • • Bolt Circle: 1.54″
      • Thread Depth: 0.47″
      • Thread: 5/16″-18UNC
• Capacity @ 700 Bar (10,000 PSI): 10 Metric tons/US tons
• Collapsed Height: 13.74″
• Collar Thread: 2-1/4″ – 14
• Collar Thread Length: 1.02″
• Duty Level: Super Heavy Duty
• Effective Area: 2.25 in²
• Extended Height: 23.86″
• Oil Capacity: 22,73 in³
• Outside Diameter: 2.25″
• Piston Internal Thread: 1″-8UNC
• Piston Rod Diameter: 1.50″
• Piston Thread Length: 0.75″
• Rated Capacity: 10 T
• Spring Return: Yes
• Stroke Length: 10.12″
