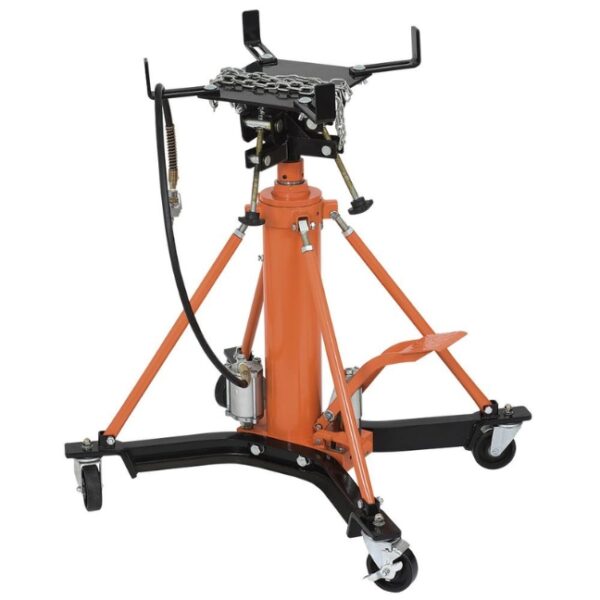

Strongarm 030538 / 816BA 1 Ton High Lift Air/Hydraulic Professional 2-Stage Transmission Jack
The Strongarm 030538 / 816BA 1 Ton High Lift Air/Hydraulic Professional 2-Stage Transmission Jack features:
- Product no. 030538
- Model no. 816BA
- STRONGARM Hydraulic Telescopic Transmission Jack
- Provides one-man operation for installing transmissions, differentials or transfer cases
- Telescopic two-stage hydraulics for greater lift range, precise load control and rapid lift
- Extendable height from 37″ to 76-3/8″

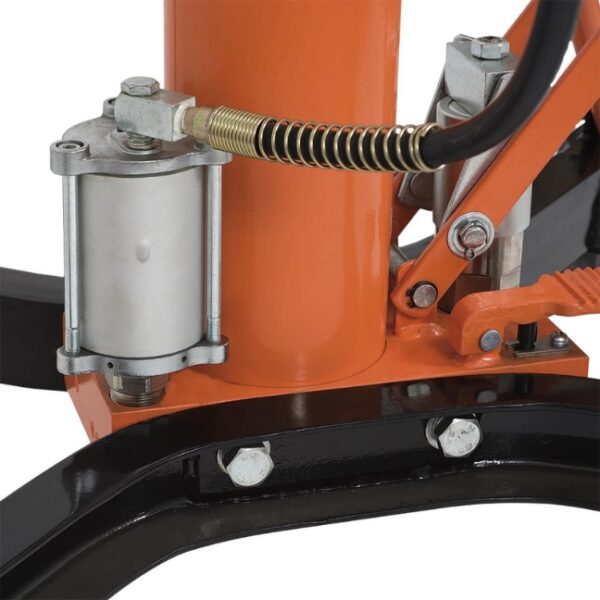

- Convenient foot-operated pump allows mechanic to use both hands to position and align saddle with transmission
- Fully adjustable universal saddle with hand adjustable corner brackets and safety chain

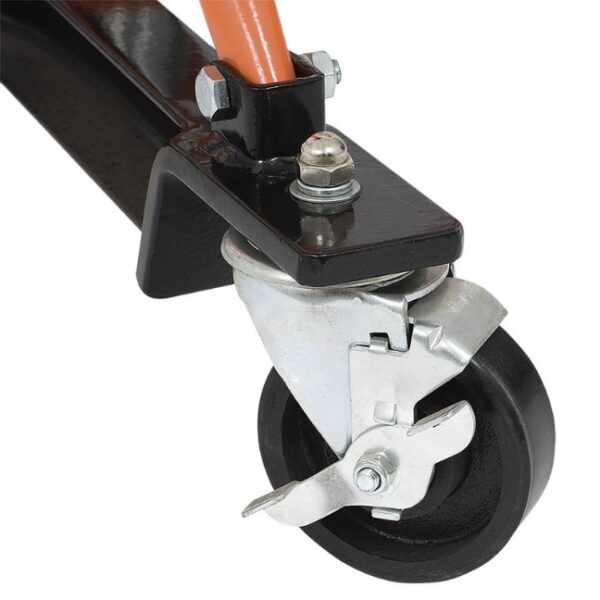

- Wide base with four swivel caster wheels for easier, more efficient under-hoist positioning
- Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard
- Meets ASME 2014
Specifications:
- Weight: 182.98 lbs
- Capacity: 1 ton
- Low height: 37″
- High height: 76-3/8″
- 1st Stage: 19-38″
- 2nd Stage: 20″
- Working air pressure range: 90 to 120 PSI
Model variations:
- 030535 / 814B 1/2 Ton High Lift Transmission Jack
- 030536 / 814BA 1/2 Ton High Lift Air Transmission Jack
- 030537 / 816B 1 Ton High Lift Professional 2-Stage Transmission Jack
- 030538 / 816BA 1 Ton High Lift Air/Hydraulic Professional 2-Stage Transmission Jack
