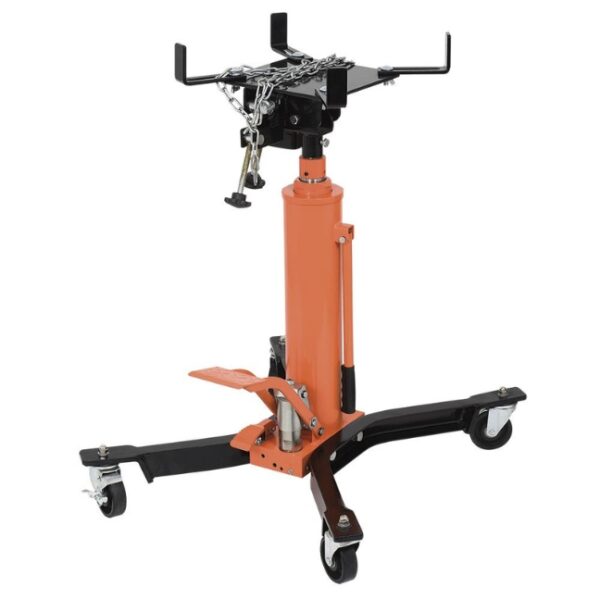

Strongarm 030535 / 814B 1/2 Ton High Lift Transmission Jack

Description

Strongarm 030535 / 814B 1/2 Ton High Lift Transmission Jack

The Strongarm 030535 / 814B 1/2 Ton High Lift Transmission Jack features:

• Product no. 030535
• Model no. 814B
• STRONGARM Hydraulic Telescopic Transmission Jack
• Provides one-man operation for installing transmissions, differentials or transfer cases
• Telescopic two-stage hydraulics for greater lift range, precise load control and rapid lift
• Extendable height from 37″ to 76-3/8″

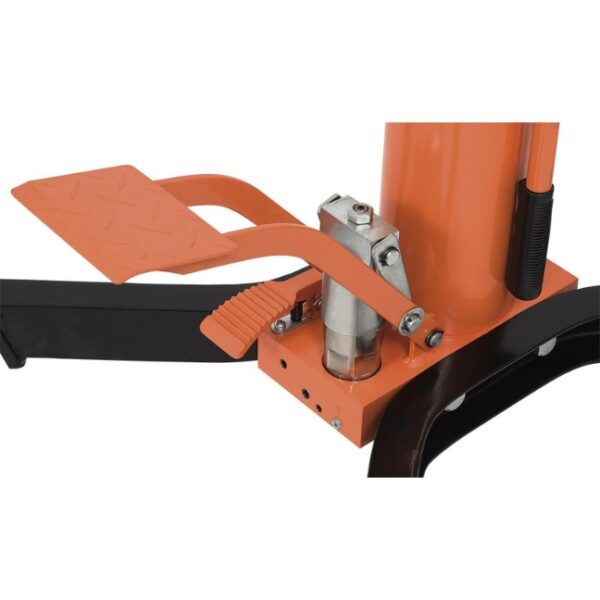

• Convenient foot-operated pump allows mechanic to use both hands to position and align saddle with transmission
• Fully adjustable universal saddle with hand adjustable corner brackets and safety chain

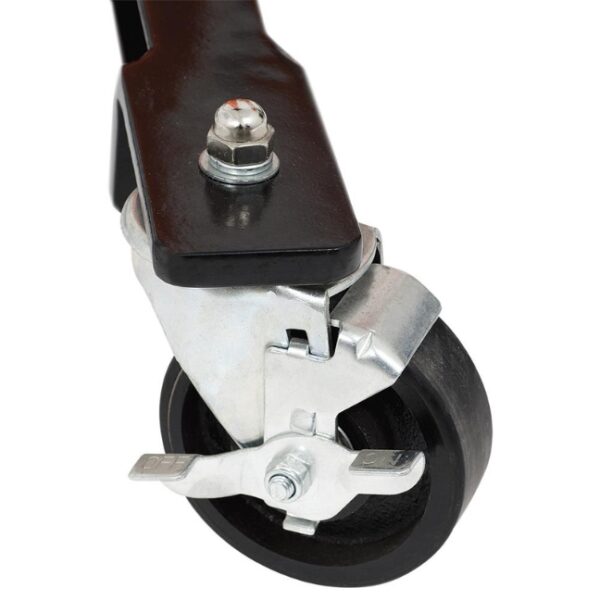

• Wide base with four swivel caster wheels for easier, more efficient under-hoist positioning
• Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard
• Meets ASME 2014

Specifications:

• Weight: 160.93 lbs
• Capacity: 0.5 ton
• Low height: 37″
• High height: 76-3/8″
• 1st Stage: 19-38″
• 2nd Stage: 20″

Model variations:

• 030535 / 814B 1/2 Ton High Lift Transmission Jack
• 030536 / 814BA 1/2 Ton High Lift Air Transmission Jack
• 030537 / 816B 1 Ton High Lift Professional 2-Stage Transmission Jack
• 030538 / 816BA 1 Ton High Lift Air/Hydraulic Professional 2-Stage Transmission Jack
