Description

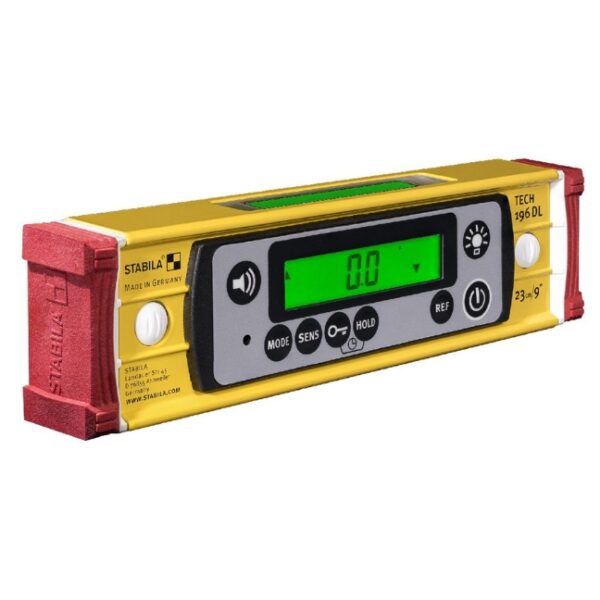

Stabila 39509 IP67 TECH LEVEL 196 DL 9″ Digital Spirit Level with Case
Stabila 39509 IP67 TECH LEVEL 196 DL 9″ Digital Spirit Level with Case:
Features:
- Product no. 39509
- Length: 9″
- Electronic spirit level with two digital displays:
-
-
- For the instantaneous measurement of inclinations and slopes
-
-
- ULTRA-PROTECT:
-
-
- Optimum protection against dust and water as per IP 67
- The spirit level can temporarily be submerged in water
-
-
- Optimum readability:
-
-
- Two digital displays that can be illuminated at the touch of a button
-
-
- Acoustic guidance:
-
-
- Align components quickly without having to look at the spirit level
- With two different audible signals
-
-
- CAL-FREE:
-
-
- Calibration of the electronic system is not necessary during daily use
- Even if the product is dropped or following temperature fluctuations
-
-
- Digital display rotates in reverse position
- REF-MODE: Accept, save and transfer an angle measurement to other components
- Keypad lock to protect against accidental inputs
- Display modes: °, %, mm/m, in/ft – decimal and as fraction
- Long operating time: Up to 400 hours
- Includes bag for safe transport
Specifications:
- Measurement accuracy:
-
-
- Normal position: 0.50 mm/m
- Reverse position: 0.50 mm/m
-
-
- Accuracy with electronic inclination measurement:
-
-
- at 0° and 90° +/-0.05°
- at 1° to 89° +/-0.10°
-
-
- Measuring modes: °, %, mm/m, inch/ft
- Number of measuring surfaces: 2
- End caps: Removable, shock-absorbing, slip-stopper
- Profile: Aluminum rectangular profile with reinforcing ribs
- Operating life: 400 hours
- Protection class: IP 67
- Battery type: AA
Typical Applications:
- Taking exact measurements in carpentry, joinery, kitchen installation, stair installation and civil engineering
- Ideal for architects to check completed work, e.g. for checking the slope of a balcony
- Perfect tool for use in gardening and landscaping work – for example when laying a garden path on a slope
