Description
Stabila 37500 TECH 106 T 7ft to 12ft Digital Plate Level

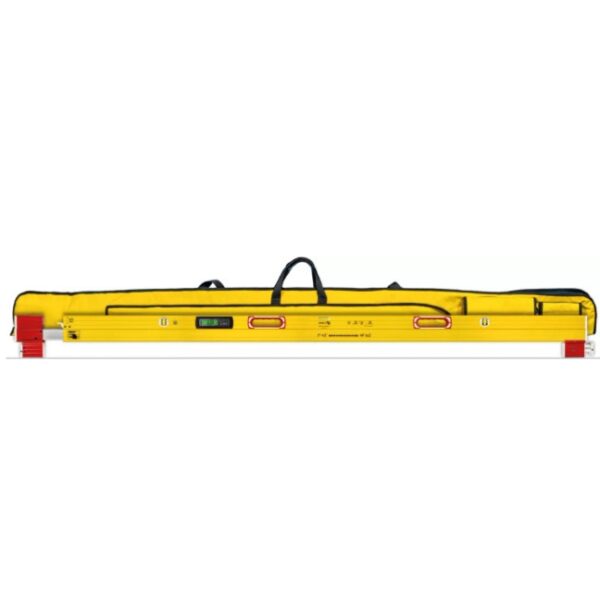

The Stabila 37500 TECH 106 T 7ft to 12ft Digital Plate Level comes with:
- Carrying Case
Features:
- Product no. 37500
- Designed for precise plumbing of wood frame walls quickly and accurately
- Specialized wall grips lock the level plate to plate for easier adjustments.
- Integrated TECH Module allows for increased accuracy with digital readout
- Plumb walls audibly with the TECH Module’s sound function
- Backlit screen for use in low light environments
- Electronic module:
-
-
- IP 65 Rated – Dust-proof and waterproof
- Electronic accuracy: At 0° and 90° = ± 0.05°, from 1° to 89° = ± 0.2°
-
-
- Battery compartment lid: Uses 2-AA batteries
- 2 Illuminated digital displays:
-
-
- Degree, % , rise and run in both inch and metric
- Display decimal or fractional readings
-
-
- Vials – vertical and horizontal:
-
-
- 1 Level vial
- 2 Plumb vials – plumb vials always at eye level
- Vial accuracy guaranteed for life
-
-
- 2 Measuring surfaces (only for non-fixed grippers): Powder coated for easy cleaning
- Telescopic extension:
-
-
- Positioning scale on both sides of the rail for visual reference from either side of the level
- 6-Sided extension rail delivers a smooth and rigid operation
-
-
- Snap-ins: With standard heights for wood frame construction
- Clamping lever with spring-loaded bolt: For locking the snap-ins
- Gripper with spring mechanism:
-
-

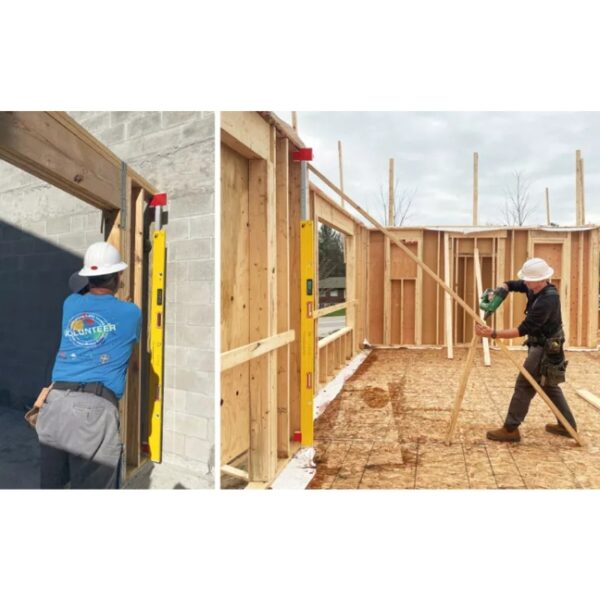

- Allow hands free plumbing of walls

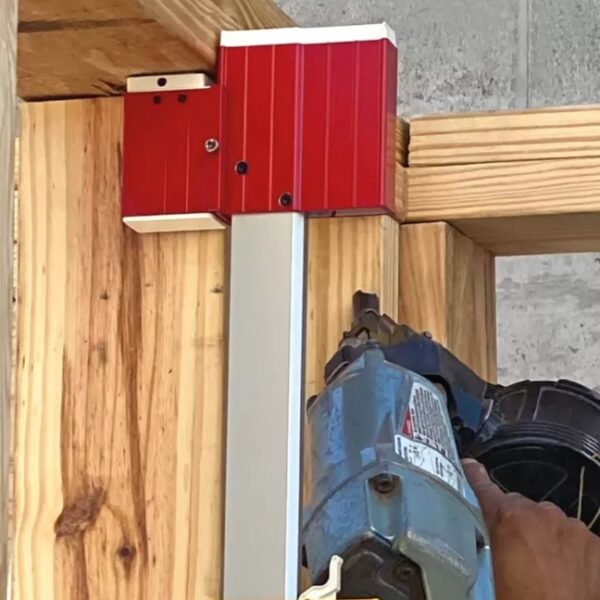

- Locks the plate level into the frame wall
- Spring-loaded system secures the level between the top and bottom plates
- Level can be left in place as the wall is adjusted to plumb without the need for a second person
-
-
- TECH module emits a tone relevant to plumb
- Hand grips at key heights for reduced fatigue and better balance and control on the job
- Easy to clean powder coated surface
- Steel hang hole for storage
Specifications:
- Measurement accuracy:
-
-
- Normal position: 1/32″ at 72″
- Reverse position: 3/64″ at 72″
- Extended normal position: 1/8″ at 120″
-
-
- Accuracy with electronic inclination measurement:
-
-
- @ 0º and 90º: 0.05º
- @ 1º to 89º: 0.20º
-
-
- Product Type: Adjustable Levels
