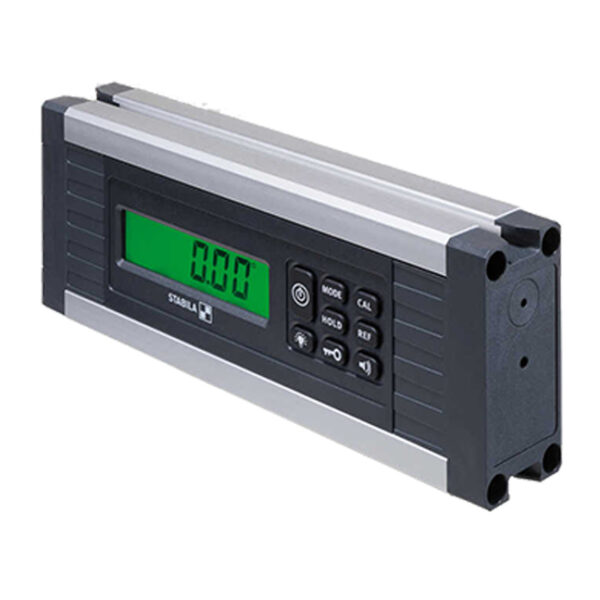

Stabila 36500 TECH 500 DP Digital Protractor

Description

Stabila 36500 TECH 500 DP Digital Protractor

Stabila 36500 TECH 500 DP Digital Protractor:

Features:

• Catalog no. 36500
• Type: TECH 500 DP
• Digital protractor for measurements from 0° to 360°
• Digital display with lighting – activate for optimum readability
• Anodized measuring surfaces – durable and robust
• Protection class IP 65: Waterproof and dustproof
• Range of mounting options:
  • • • T-groove
      • V-groove
      • Rare-earth magnet system
• RS-485 interface with MODBUS protocol for documentation:
  • • • PRINT MODE: measurement after pressing a button
      • AUTO MODE: measurement after any request
• STABILA ANALYTICS software for analysis and documentation
• Superior functions enable use as a hand-held device
• Acoustic guidance:
  • • • 3 different audible signals for quick alignment
• REF function: fast measurement in relation to a reference angle
• HOLD function: saves the measured value
• Display modes:
  • • • °, %, mm/m, in/ft – decimal and fraction
• Display options:
  • • • Precision display (0.01°)
      • Rough display (0.1°) modes
• Digital display rotates in reverse position
• Keyboard lock
• Includes bag
• Applications:
  • • • Production:
        • • • Performing maintenance on and setting machines
      • Checking and monitoring processes
      • Quality Assurance:
        • • • Measuring key values
      • Special-purpose Mechanical Engineering
        • • • Easy alignment of systems during commissioning

Technical Specifications:
