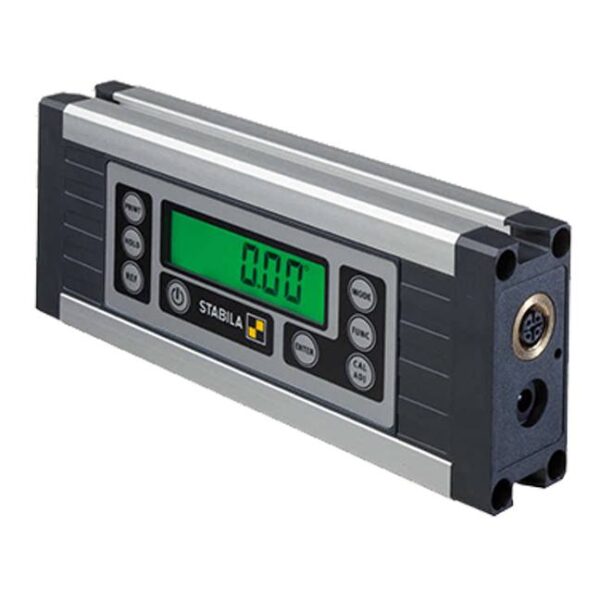

Stabila 36100 TECH 1000 DP Digital Protractor

Description

Stabila 36100 TECH 1000 DP Digital Protractor

The Stabila 36100 TECH 1000 DP Digital Protractor:

Features:

• Digital protractor for measurements from 0° to 360°
• Digital display with lighting – activate for optimum readability
• Anodised measuring surfaces – durable and robust
• Protection class IP 65: Waterproof and dustproof
• Range of mounting options:
  • • • T-groove
      • V-groove
      • Rare-earth magnet system
• Variable power supply:
  • • • Integrated Li-ion battery
      • Mains plug or interface
• Also works as a measuring station
• RS-485 interface with MODBUS protocol for documentation:
  • • • 1. PRINT MODE: measurement after pressing a button
      • 2. AUTO MODE: measurement after any request
• STABILA ANALYTICS software for analysis and documentation
• Also works as a hand-held device
• REF function: fast measurement in relation to a reference angle
• HOLD function: saves the measured value
• Display modes: °, %, mm/m, in/ft – decimal
• Digital display rotates in reverse position
• Mains adapter with 4 country-specific interchangeable plug types
• Includes USB data cable with M12 connector and 4-pin data cable with M12 connector
• Includes bag

Technical Specifications:

Applications:

• Automaton:
  • • • Modernisation and digitisation of existing machines in production
• Quality Assurance:
  • • • Measuring, recording and documenting key values
• Production:
  • • • Performing maintenance on and setting machines
      • Carrying out long-duration measurements for checking and monitoring processes
• Special-purpose Mechanical Engineering
  • • • Long-term measurements for recording position changes when commissioning a machine
      • Transferring measured values for analysis and documentation in the transfer report
