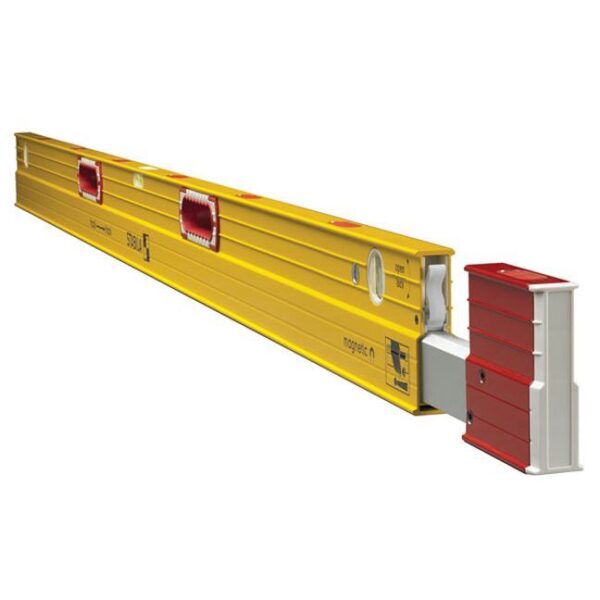

Stabila 34712 7ft to 12ft Type 106TM Magnetic Extendable Plate Level

Description

Stabila 34712 7ft to 12ft Type 106TM Magnetic Extendable Plate Level

Stabila 34712 7ft to 12ft Type 106TM Magnetic Extendable Plate Level:

Features:

• Catalog no. 34712
• Type: 106TM
• Extends from 7 ft. to 12 ft.
• Magnetic 3-Chamber rectangular aluminum profile with reinforcing ribs
• Super strong magnets:
  • • • Allow hands-free operation
      • Horizontal, Vertical and Overhead
• Fully sealed 6-sided, solid rail extension:
  • • • Eliminates deflection to deliver the smoothest extension movement available
• Two coated measuring surfaces
• Vial features:
  • • • 2 Vertical (plumb) vials
      • 1 Horizontal (level) vial
      • Top horizontal vial – permanently positioned at eye level
      • Guaranteed for life never to fog, leak or require adjustments
• Frame side opposite the stand-offs provides a level measuring surface and straight edge
• Removable end caps
• Plate height dimensions are marked on the rail

Specifications:

• Extension range: 7 ft. to 12 ft.
• Measurement accuracy:
  • • • ±1/32″ @ 72″ in normal position
      • ±3/64″ @ 72″ in reverse position
      • ±1/8″ @ 120″ in extended normal position
• Number of measuring surfaces: 2
• Magnet system: Recessed Rare Earth
• Profile: Reinforced 2 chamber profile
• End caps: Standard
• Weight: 10 lbs

Replacement parts and optional items – sold separately:

• 20065 Replacement End Caps
• 33100 Replacement Stand-Offs
• 33000 Plate Level Maintenance Kit
• 30035 Level Carrying Case
