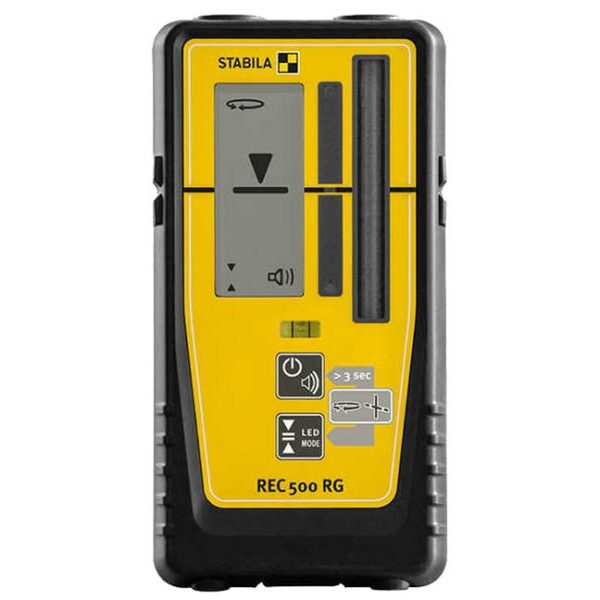

Stabila 07360 REC 500 RG Rotation and Line Receiver

Description

Stabila 07360 REC 500 RG Rotation and Line Receiver

The Stabila 07360 REC 500 RG Rotation and Line Receiver includes:

• 07360 / REC 500 RG receiver
• Holder
• 1 x AA battery

Features:

• Catalog no. 07360
• Model no. REC 500 RG
• Accurately determines the beam position of rotary lasers or pulse-modulated line lasers
• Suitable for rotary laser with green or red diodes
• For working at large distances outdoors or in bright indoor lighting
• Two-sided digital display for fast work:  illuminated at the touch of a button
• Visual display: Arrow symbols on the display indicate the position of the receiver relative to the reference plane of the laser
• Acoustic guidance: Beeping tones with volume control
• 4 Sensitivity Levels for application-oriented work:
  • • 1. Very Fine: with a sensitivity of ± 1/64″ (± 0.3 mm)
      2. Fine: with a sensitivity of ± 1/32″ (± 1.0 mm)
      3. Coarse: with a sensitivity of ± 5/64″ (± 2.0 mm)
      4. Very Coarse: with a sensitivity of ± 3/16″ (± 5.0 mm)
• Protection class:  IP 67 Waterproof and dustproof
  • • • Optimum protection against rain during outdoor use and against dust during drywall construction
• Range of mounting options: holder for attaching to levelling rods as well as integrated magnet system
• Battery status display
• Battery life: 50 hours
