Description

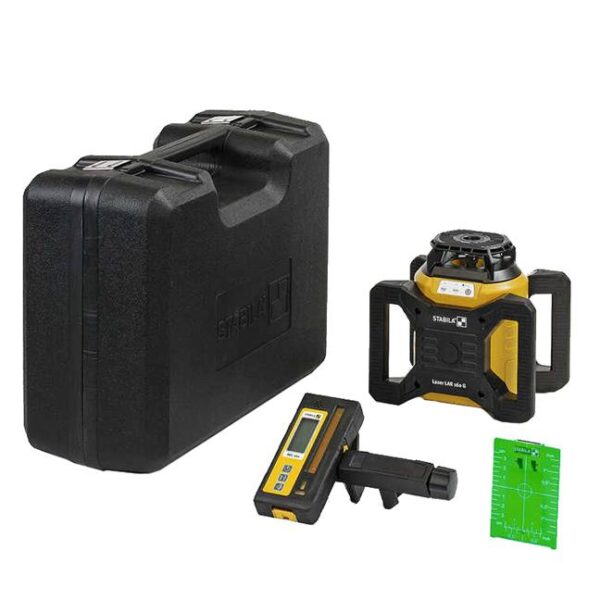

Stabila 04510 LAR 160 G Rotation Laser Kit
The Stabila 04510 LAR 160 G Rotation Laser Kit includes:
- LAR 160 G Laser
- Digital Receiver
- Target Plate Laser Glasses
- 2 x D 1.5 V batteries
- 2 x AA 1.5 V batteries
- Hard Shell Case
Also available: 04500TR LAR160G Interior/Exterior Laser Set with Tripod and Rod
Features:
- Catalog no. 04510
- Model: LAR160 G
- A high quality laser for basic horizontal leveling and layout work
- Green Beam Laser – more visible indoors
- Green laser beam – up to four times more visible to the human eye than red beams
- Designed for both Interior and Exterior applications
- IP65 Rated (Dirt and Water Proof) for harsh working conditions
- Self-leveling with servo motors – more accurate than pendulum leveling
- Simple 3 button operation
- Working Range: 1,800 ft.
- Horizontal/Vertical/Square – rotates on its side with plumb dot
- Receiver IP67 Rated (Dust and Water Proof)
Specifications:
| Stabila 04510 LAR160G Interior/Exterior Laser Specifications |
|
| Laser class | 2 |
| Power | <1 mW |
| Laser wavelength | LAR 160 G: 510 to 530 nm |
| Self leveling area | +/- 5 ° |
| Leveling accuracy | +/- 0.1 mm / m |
| Work area receiver | Ø 600 m |
| Operating temperature range | -10 ° C – +50 ° C (14 ° F – +122 ° F) |
| Storage temperature range | -25 ° C – +70 ° C (-13 ° F – +158 ° F) |
| Tripod mounting thread | 2 x 5/8 “ |
| Batteries included | 2 x D 1.5 V, 2 x AA 1.5 V |
| Operating time LAR 160 G | approx. 20 hours |
| Protection class | IP 65 |
