Description

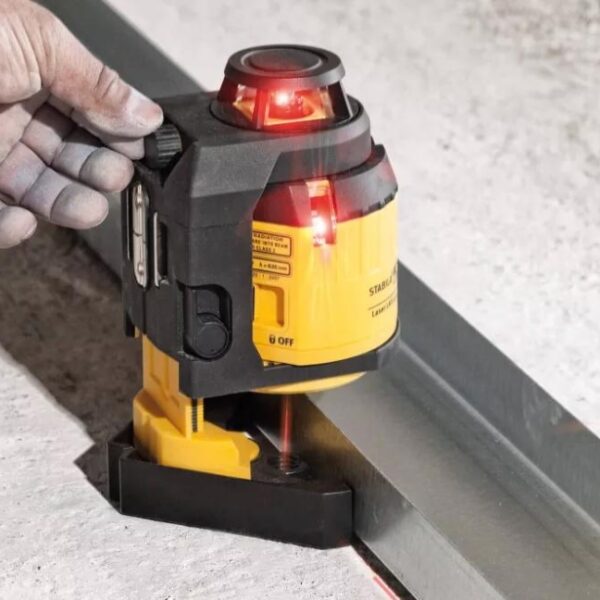

Stabila 03360 LAX400 Pro Liner Multi-Line Self Leveling Laser
The Stabila 03360 LAX400 Pro Liner Multi-Line Self Leveling Laser includes:
- Target plate
- Wall mount bracket
- High-Viz laser goggles
- Batteries
- Manual
- Hard plastic case
Features:
- Catalog # 03360
- Type: LAX400
- Full Automatic and Self-Levelling

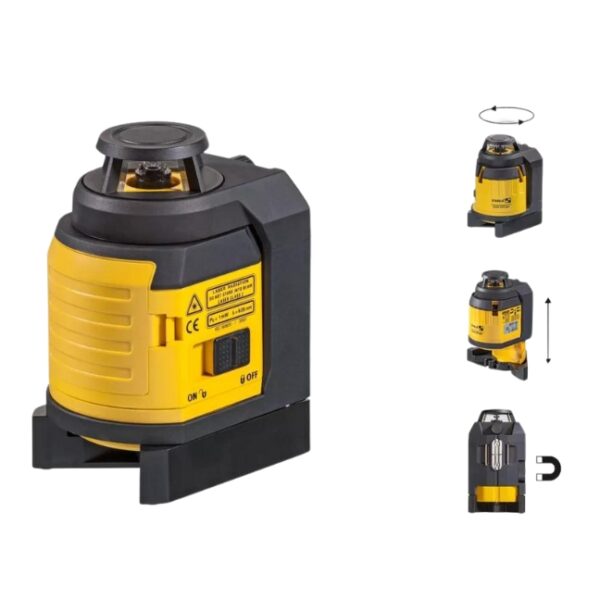

- Laser pivots 360º inside its housing
- 360º Horizontal line
- 2 Vertical lines at 90º
- Plumb points
- Bright, crisp lines and dots
- Works with or without receiver
- Fast layout fine adjustment knob pivots the right angle lines left/right
- Dual Purpose Base allows positioning on flat surfaces or on standard 5/8″-11 threaded tripods
- Integrated V-groove rare earth magnetic mount and vertical elevation height adjustment
- Self-levelling mechanism automatically locks on shut-down to prevent damage in transport
- Pulsed lase lines allow use with optional 07330 receiver (sold separately)
Stabila 03360 LAX400 Laser Specifications |
|
| Product no. | 03360 |
| Type | LAX400 |
| Laser Class | 2 |
| Output | <1 mW |
| Laser Wavelength | 635 nm |
| Self-levelling Range | approx. ± 4.5º |
| Accuracy Tolerance Level | ± 3/8″ @ 100 ft. (± 0.3 mm/m) |
| Accuracy Tolerance Straightness | ± 1/4″ @ 100 ft. (± 0.2 mm/m) |
| Accuracy Tolerance Up Beam | ± 3/8″ @ 100 ft. (± 0.3 mm/m) |
| Working Range | Visual 60 ft. (490 ft. with receiver) |
| Battery Run-time | 10 hours |
| Batteries Included | 4 x AA 1.5V |
| Dimensions | 6″ x 3.25″ x 4.5″ |
| Weight | 2.2 lbs (1.0 kg) |
