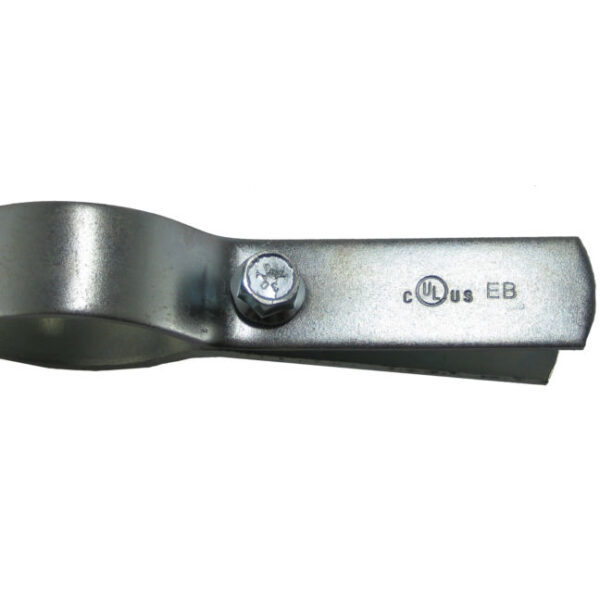

Standard Riser Clamps Zinc Plated

Description

Standard Riser Clamps Zinc Plated

Standard Riser Clamps Zinc Plated:

• Designed for supporting vertical runs of riser pipe between floors of a building
• Recommended for suspending non-insulated pipe lines
• Friction between the pipe and riser transfers the weight of the pipe through the riser to the building structure
• Risers use the structure to support the legs on each end of the clamp
• Risers are usually located at floor penetrations, particularly for continuous floor slabs such as concrete
• Made of zinc plated carbon steel
• FM and UL approved

Sizes: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 4″, 5″, 6″, 8″, 10″, 12″
