Description

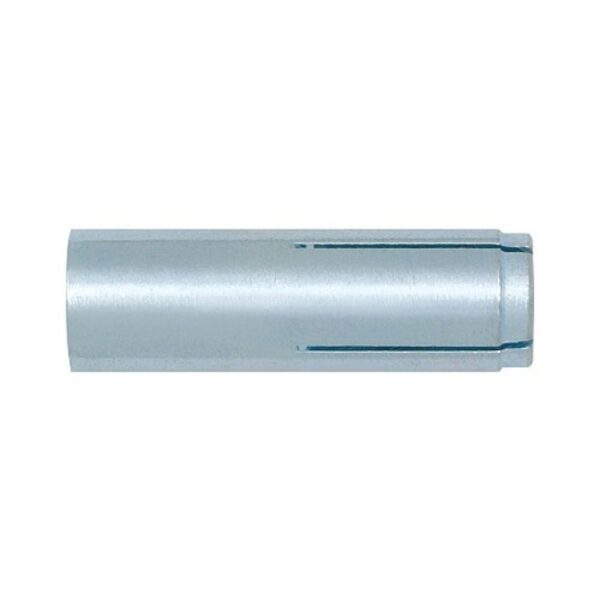

Powers Steel Drop-In Anchors
Powers Steel Drop-In Anchors:
Features:
- Sizes:
-
-
- 1/4″, 3/8″, 1/2″, 5/8″, 3/4″
-
-
- All-steel machine bolt anchor made of carbon steel
- Can be used in solid concrete including:
-
-
- Lightweight concrete
- Concrete-filled steel deck members
-
-
- Can also be considered for:
-
-
- Hard stone and solid block base materials
-
-
- Internally threaded anchor
-
-
- For easy bolt removability and service work
-
-
- Smooth wall drop-in can be installed:
-
-
- Flush mounted
- Or below the base material surface
-
-
- Applications:
-
-
- Suspending Conduit
- Fire Sprinkler Supports
- Cable Trays and Strut
- Concrete Formwork
- Pipe Supports
- Suspended Lighting
-
-
- Approvals:
-
-
- Tested in accordance with ASTM E488 in uncracked concrete
- Underwriters Laboratory (UL Listed) – File No. EX1289 and VFXT7.EX1289, see listing for sizes
- FM Approvals (Factory Mutual) – see approval for sizes
- Federal GSA Specification – meets descriptive
-
-
Specifications:
- 06304-PWR:
-
-
- Anchor size: 1/4″
- Overall length: 1″
- Drill diameter: 3/8″
- Internal thread length: 7/16″
- Minimum embedment depth: 1″
-
- 06306-PWR:
-
-
- Anchor size: 3/8″
- Overall length: 1-9/16″
- Drill diameter: 1/2″
- Internal thread length: 5/8″
- Minimum embedment depth: 1-9/16″
-
-
- 06308-PWR:
-
-
- Anchor size: 1/2″
- Overall length: 2″
- Drill diameter: 5/8″
- Internal thread length: 13/16″
- Minimum embedment depth: 2″
-
-
- 06320-PWR:
-
-
- Anchor size: 5/8″
- Overall length: 2-1/2″
- Drill diameter: 7/8″
- Internal thread length: 1-3/16″
- Minimum embedment depth: 2-1/2″
-
-
- 06312-PWR:
-
-
- Anchor size: 3/4″
- Overall length: 3-3/16″
- Drill diameter: 1″
- Internal thread length: 1-3/8″
- Minimum embedment depth: 3-3/16″
-
-
-
