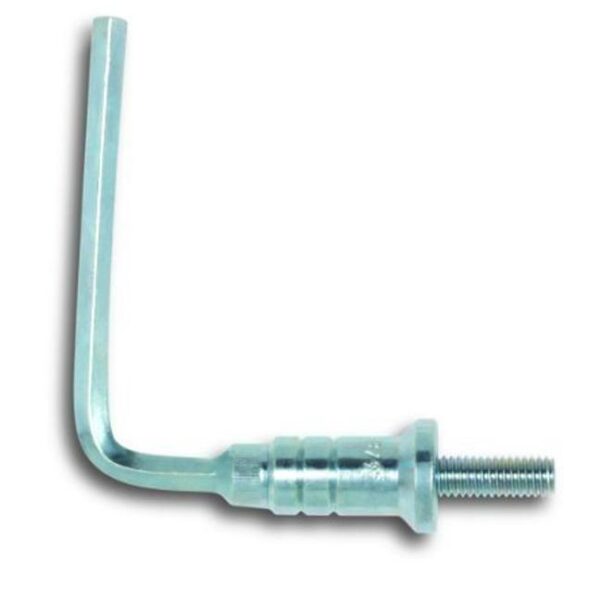

Powers 09343-PWR Setting Tool For Hollow Set Anchor – 3/8″

Description

Powers 09343-PWR Setting Tool For Hollow Set Anchor – 3/8″

The Powers 09343-PWR Setting Tool For Hollow Set Anchor – 3/8″:

• Hollow set tool for hollow block and clay brick masonry base materials

The Powers 09340-PWR Hollow-Set Drop-In Anchor 3/8″ features:

• Internally threaded anchor for easy bolt removability and service work
• Unique expansion design allows for anchoring in thin-walled base materials
• Versatile setting options allows for hollow or solid base materials
• Tested in accordance with ASTM E488 and AC01 criteria

Designed for anchoring in hollow base materials such as:

• Hollow concrete block
• Brick with weep holes
• Hollow core pre-cast concrete plank
• Also works in solid base materials

Overcomes the following problem with hollow masonry materials:

• Hollow masonry materials often have a minimum outer wall thickness of 1-1/2″
• During the drilling process, spalling on the back side of the wall often decreases the wall thickness available for anchoring to 1″ or less
• The design of the Hollow-Set™ Dropin overcomes this problem

Typical Applications:

• Anchoring to Concrete Block
• Fastening to Precast Hollow Core Plank
• Suspending Conduit
• Fire Sprinkler
• Cable Trays and Strut
• Suspended Lighting
• Pipe Supports
• Removable Anchorage
