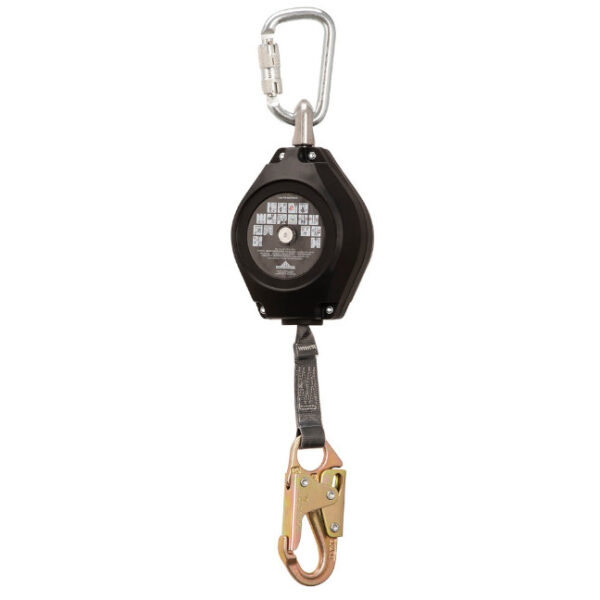

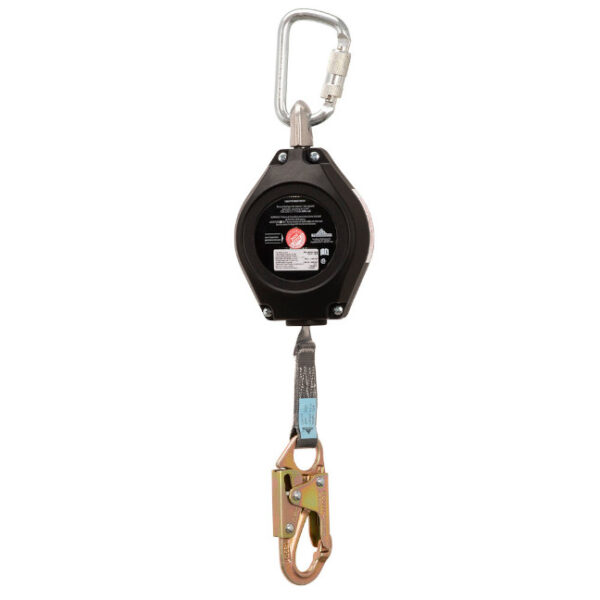

Peakworks SRL-80302-18LE V845722018LE 18FT Leading Edge SRL Single Leg Web with Snap and Pack
Peakworks SRL-80302-18LE V845722018LE 18FT Leading Edge SRL Single Leg Web with Snap and Pack:
Features:
- Product no. V845722018LE
- Model no. SRL-80302-18LE
- PeakWorks Self-Retracting Lifeline (SRL)
- Leading edge (LE) SRL designed to protect the worker when operating:
-
-
- Near an edge
- Where a fall hazard exists that could cause the lifeline to come into contact with the edge
-
-
- Provides additional protection against sharp or abrasive surfaces found on many construction sites
- Mounts below a worker’s fall arrest D-Ring
- Clearly marked to ensure the correct SRL is used for Leading Edge applications
- Anchor point incorporates a heavy-duty, durable, and convenient swivel eye

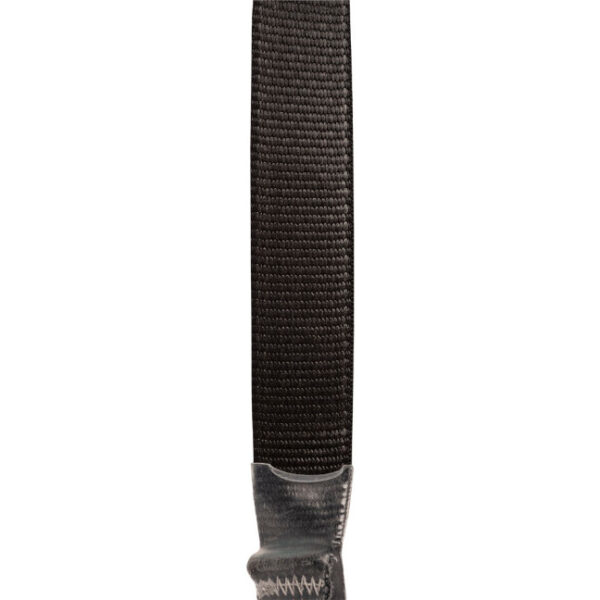

- Webbing features a sewn-in indicator on the lifeline itself for maximum safety
- Rescue units come with release pins and a two-way winding handle to engage the rescue/recovery mode
- 310 lbs (141kg) capacity for 1 worker (combined weight of person, tools, clothing, etc.)
- Lightweight units mount on a worker’s harness for better mobility and range of motion
- Sewn-in indicator on the lifeline itself for maximum safety
Specifications:
- Anchor Hook Material: Steel
- Anchor Hook Type: Carabiner
- Average Arrest Force: 4.12kN (926 lbf)
- Body Hook Type: Snap Hook
- Capacity: 310 lbs (141 kg)
- Certification: CSA Z259.2.2-2017|ANSI Z359.14-2014, Class B
- Class Type: B
- Gate Opening: 3/4″ (19mm)
- Housing Material: Composite Plastic
- Leading Edge: Yes
- Leg Type: Single
- Length: 18ft (5.486m)
- Lifeline Material: Dyneema®
- Maximum Total Arrest Distance – Non-Leading Edge application: 57″ (1.44m)
- Minimum Fall Clearance – Leading Edge application: 16ft (4.87m)
- Minimum Fall Clearance – Non-Leading Edge application: 9ft (2.74m)
- Minimum set back distance from edge – Leading Edge application: 16″ (40 cm)
- Rescue and Recover – SRL-R: No
- Webbing/Cable Thickness: 0.07″ (1.75mm)
- Webbing/Cable Width: 0.08″ (20mm)
Click here for more PeakWorks SRL – Self-Retracting Lifelines
