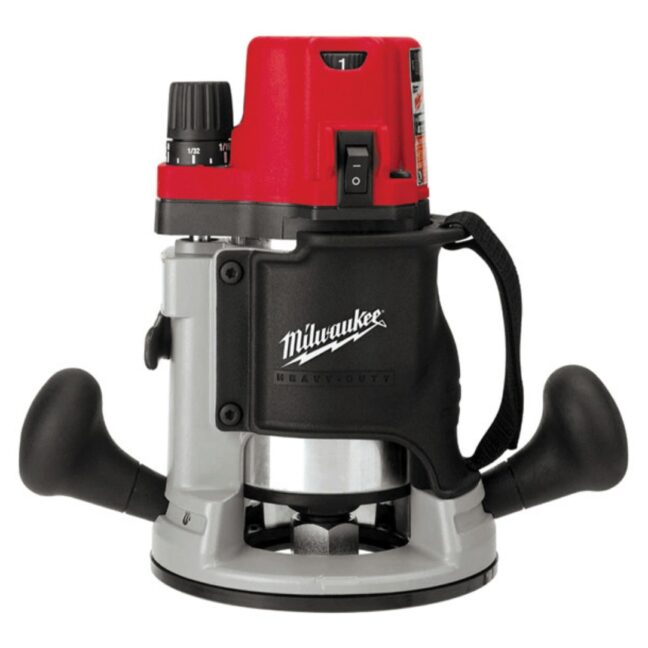

Milwaukee 5616-20 2-1/4 Max HP EVS BodyGrip Router

$299.45

Backorder

UOM: EA SKU: 5616-20 Categories: , , UPC: 045242032860

Description

Milwaukee 5616-20 2-1/4 Max HP EVS BodyGrip Router

The Milwaukee 5616-20 2-1/4 Max HP EVS BodyGrip Router includes:

  • 2 – 1-1/8″ Collet Wrenches
  • 1/4″ Collet
  • T-Handle wrench

Features:

  • Product no. 5616-20
  • BodyGrip® design features precise macro/micro linear depth adjustment system (1/64″ increments)
  • Above-the-table linear height adjustments
  • Coarse adjustments to within 1/8″
  • Micro-fine adjustments to within 1/64″
  • Motor does not spin as the cut depth is changed (unlike helical systems)
  • Motor shield design is exclusive to Milwaukee
  • Circuit board is completely submerged in a protective, flexible compound for greater impact, vibration and dust protection
  • Heavy duty 22 amp switch
  • 100% sealed ball bearing motor construction
  • Durable, tough machined aluminum motor housing and base
  • Electronic Variable Speed (EVS) control with soft start
  • 36 speed settings for efficient matching of tool speed to routing task
  • Electronic motor feedback circuitry maintains optimal cutting speed and power regardless of load conditions

Specifications:

  • Amps: 13A (120V AC)
  • No load speed: 10,000 to 24,000 RPM
  • Maximum HP: 2.2
  • Base diameter: 6″
  • Depth adjustment: 1-21/32″
  • Collet diameter: 1/4″ – 1/2″
  • Cord type: 8 ft. fixed
  • Height: 8-1/2″
  • Weight: 8.8 lbs

Click here for a selection of router bits.

Additional information

Weight 11.35 lbs
Brand Name

Bare/Kit

Bare Tool

Voltage

Corded

Power Tool

Router
