Milwaukee 49-22-5604 PACKOUT SAE Tap and Die Set with HEX-LOK 2-in-1 Handle 38-Piece

Description

Milwaukee 49-22-5604 PACKOUT SAE Tap and Die Set with HEX-LOK 2-in-1 Handle 38-Piece

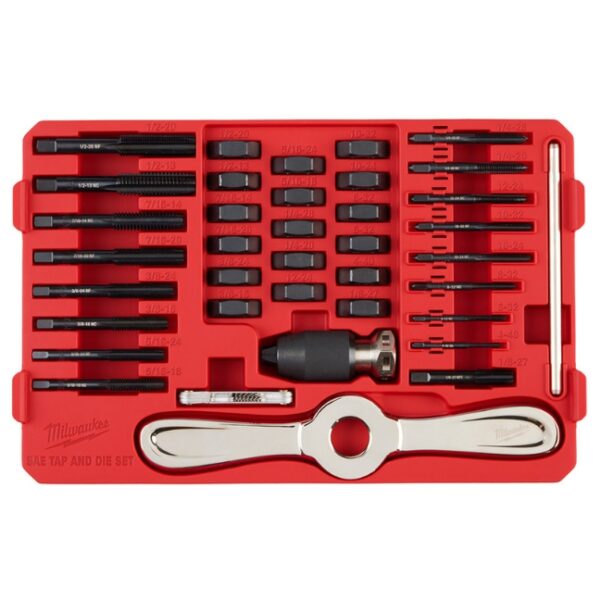

The Milwaukee 49-22-5604 PACKOUT SAE Tap and Die Set with HEX-LOK 2-in-1 Handle 38-Piece includes:

• 8-44 TPI SAE Thread Gauge(49-57-5011)
• 17 Straight Flute Plug Taps:
  • • • 4-40 NC (49-57-5108), 6-32 NC (49-57-5115), 8-32 NC (49-57-5121)
      • 10-24 NC (49-57-5125), 10-32 NF (49-57-5127), 12-24 NC (49-57-5130)
      • 1/4″-20 NC (49-57-5134), 1/4″-28 NF (49-57-5138
      • 5/16″-18 NC (49-57-5142), 5/16″-24 NF (49-57-5144)
      • 3/8″-16 NC (49-57-5148), 3/8″-24 NF (49-57-5151)
      • 7/16″-14 NC (49-57-5155), 7/16″-20 NF (49-57-5157)
      • 1/2″-13 NC (49-57-5160), 1/2″-20 NF (49-57-5162)
• 1/8″-27 NPT Straight Flute Taper Tap (49-57-5189)
• 17 1-Inch Hex Threading Dies:
  • • • 4-40 NC (49-57-5308), 6-32 NC (49-57-5315), 8-32 NC (49-57-5321)
      • 10-24 NC (49-57-5325), 10-32 NF (49-57-5327), 12-24 NC (49-57-5330)
      • 1/4″-20 NC (49-57-5334), 1/4″-28 NF (49-57-5338)
      • 5/16″-18 NC (49-57-5342), 5/16″-24 NF (49-57-5344)
      • 3/8″-16 NC (49-57-5348), 3/8″-24 NF (49-57-5351)
      • 7/16″-14 NC (49-57-5355), 7/16″-20 NF (49-57-5357)
      • 1/2″-13 NC (49-57-5360), 1/2″-20 NF (49-57-5362)
      • 1/8″-27 NPT (49-57-5389)
• Tap Collet
• Sliding T-Handle
• Hex-LOK 2-IN-1 Handle

Features:

• Product no. 49-22-5604
• Hex-LOK™ 2-in-1 Handle:
  • • • The most versatile threading solution designed for tap and die threading
      • Compatible with 1” hex dies & MILWAUKEE® Tap Collet
      • Compatibility allows for easy snap in and out, tool-free die and collet changes
• Includes precision machined threading accessories for the most common applications
• Taps and Dies feature:
  • • • Long lasting laser etch for the clearest markings
      • Black Oxide coating for corrosion resistance
• Plug Style Taps designed for through hole threading
• Hex Dies used to create or repair threads
• Designed for use in metal materials including:
  • • • Brass, aluminum, mild steel, and more

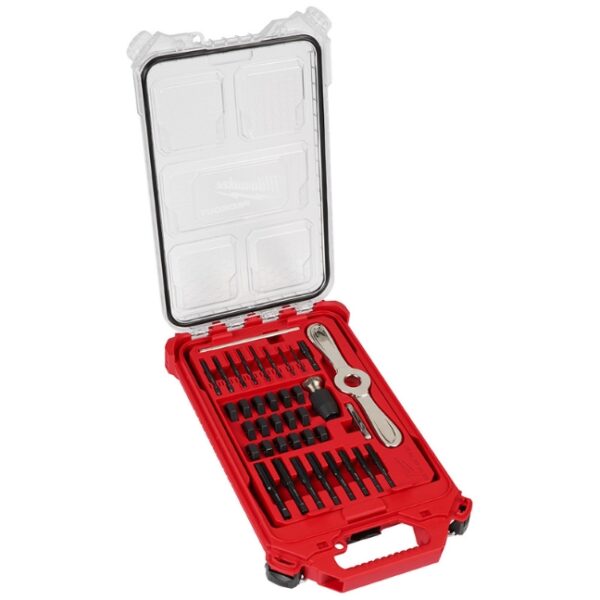

• The set is organized in a PACKOUT™ Low-Profile Compact Organizer and includes a removable storage tray
• Includes accompanying drill bits for pre-drilling holes:
  • • • Drill bits are designed for use with Drill Drivers
• Hand taps are not recommended for use with power tools
• For best results use with cutting fluid
• Hex-LOK™ 2-in-1 Handle is covered under a limited lifetime warranty

Also available:

• 49-22-5603 PACKOUT Metric Tap and Die Set with HEX-LOK 2-in-1 Handle 38-Piece
