Description
Milwaukee 49-22-4073 Door Lock Installation Hole Saw Kit

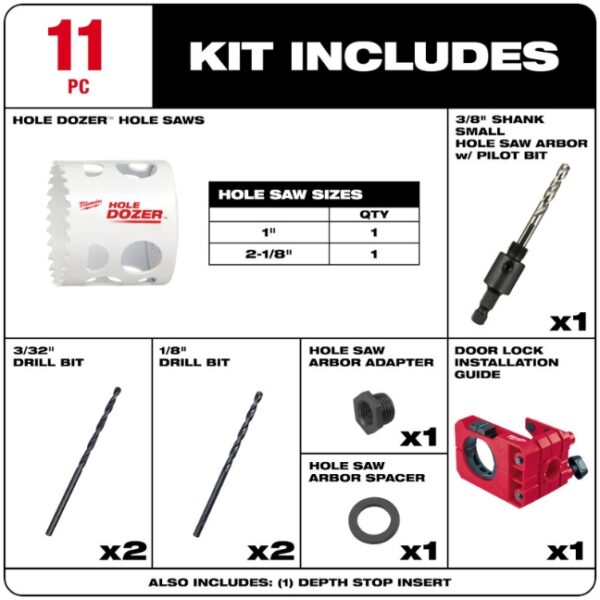

The Milwaukee 49-22-4073 Door Lock Installation Kit includes:
- Auto-centering drill guide
- Anti-splinter depth stop
- 2-1/8″ Hole Dozer™ hole saw – 49-56-0127
- 1″ Hole Dozer™ hole saw – 49-56-0043
- Small arbor & pilot bit
- Arbor adapter and spacer
- 2 – 3/32″ Drill bits (for pre-drilling holes for latch plate screws)
- 2 – 1/8″ Drill bits (for pre-drilling holes for latch plate screws)
Features:
- Product no. 49-22-4073
- Makes it simple to align and drill holes in slab doors
- Saves time and frustration when installing locksets and deadbolts
- Make centered holes with a clean finish using the auto-centering guide and anti-splinter depth stop
- Works on wood and metal interior and interior doors from 1-3/8″ to 1-3/4″ thick
- Also works on plastic
Specifications:
- Door thickness capacity: 1-3/8″ to 1-3/4″
- Backset capacity: 2-3/8″ to 2-3/4″
- Cross Bore hole capacity: 2-1/8″
- Latch Bore hole capacity: 1″

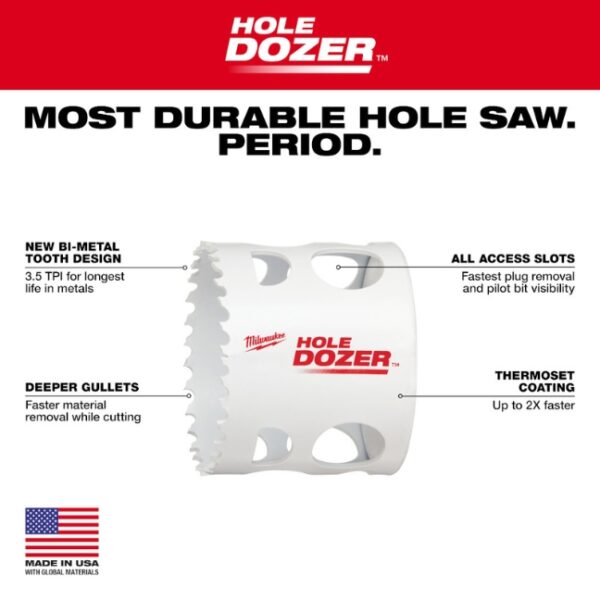

Hole Dozer™ Hole Saws feature:
- Rip Guard™ teeth, the strongest tooth form in the industry
- Rip Guard™ Limited lifetime tooth break warranty
- Plug Jack™ all access slot design for fast plug removal
- Bi-metal construction with 8% cobalt for increased wear resistance
Shig’s Handyman Services –
I had to install 12 solid core doors and I wanted a jig to speed up the process and be accurate as well….and this tool did the job! Very simple to use, quality build and comes with everything you need!
Well worth the money!!
