Description
Milwaukee 48-20-2164 SDS MAX Vacuum Bit 1″ x 17-1/2″ x 25″
The Milwaukee 48-20-2164 SDS MAX Vacuum Bit includes:
- 48-20-2150 SDS MAX Vacuum Bit Adapter
- 48-20-2164 SDS MAX Vacuum Bit 1″ x 17-1/2″ x 25″
Features:
- Product no. 48-20-2164
- Shank type: SDS MAX
- Diameter: 1″
- Useable length: 17-1/2″
- Overall length: 25″
- OSHA Table 1 compliant drilling solution
- For the regulation on respirable crystalline silica dust (29 CFR 1926.1153)
- Dust Extraction Holes remove dust from the hole while drilling
- Up to 2x faster chemical anchor preparation by creating a clean hole while drilling
- 4-Cutter Carbide Tip delivers long life in concrete and concrete with rebar applications
- Universal adapter fits most common dust extractor vacuums
- 48-20-2100 Replacement adapter available (sold separately)
- Use in SDS-Plus Rotary Hammers in rotary hammer mode
- ANSI specified to fit common anchors
Specifications:
- Minimum dust extractor power rating: 1200 W
- Maximum dust extractor hose length: 16ft. 5in. (5 m)
- Dust extractor hose diameter: 1.25″ (32 mm) or larger
- Minimum air flow: 82 CFM
- Minimum air pressure: 92″ water lift
| Available Model Variations | |||
| SDS MAX with 48-20-2150 SDS MAX Vacuum Bit Adapter | |||
| Product no. | Diameter | Usable Length | Overall Length |
| 48-20-2152 | 5/8″ | 15-3/4″ | 23″ |

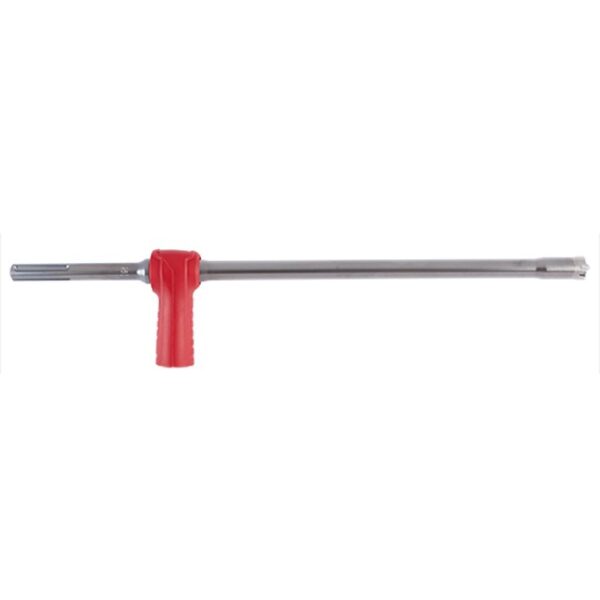

| 48-20-2156 | 3/4″ | 15-3/4″ | 23″ |
| 48-20-2160 | 7/8″ | 15-3/4″ | 23″ |
| 48-20-2164 | 1″ | 17-1/2″ | 25″ |
| 48-20-2168 | 1-1/8″ | 27″ | 35″ |
| 48-20-2172 | 1-3/8″ | 27″ | 35″ |
Milwaukee vacuum concrete bits are also available with SDS-Plus Shanks:
| SDS Plus with 48-20-2100 SDS PLUS Vacuum Bit Adapter | |||
| Product no. | Diameter | Usable Length | Overall Length |
| 48-20-2102 | 7/16″ | 7-7/8″ | 13″ |
| 48-20-2106 | 1/2″ | 7-7/8″ | 13″ |
| 48-20-2110 | 9/16″ | 9-1/2″ | 14″ |
| 48-20-2114 | 5/8″ | 9-1/2″ | 14″ |
| 48-20-2118 | 3/4″ | 9-1/2″ | 14″ |
