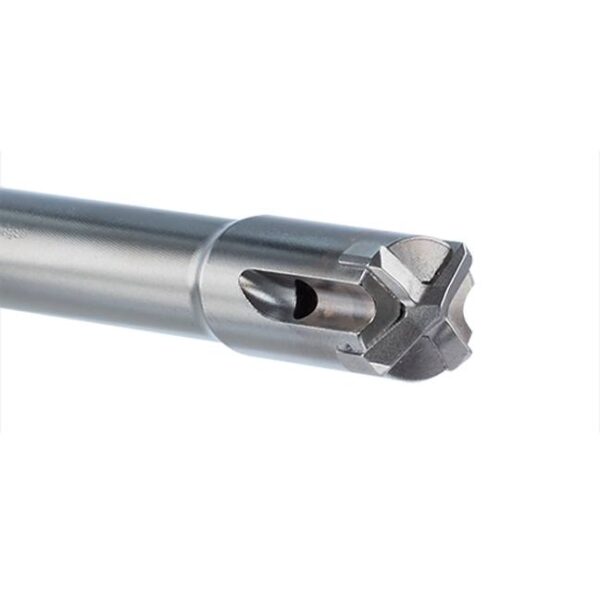

Milwaukee 48-20-2114 SDS PLUS Vacuum Bit 5/8″ x 9-1/2″ x 14″

Sale!
Clearance

This is a final sale item with limited quantities.

Original price was: $148.98.Current price is: $79.00. (47% off)

Only 2 Available

UOM: EA SKU: 48-20-2114 Categories: , , , , UPC: 045242506927

Description

Milwaukee 48-20-2114 SDS PLUS Vacuum Bit 5/8″ x 9-1/2″ x 14″

The Milwaukee 48-20-2114 SDS PLUS Vacuum Bit includes:

  • 48-20-2100 SDS PLUS Vacuum Bit Adapter
  • 48-20-2114 SDS PLUS Vacuum Bit 5/8″ x 9-1/2″ x 14″

Features:

  • Product no. 48-20-2114
  • Shank type: SDS PLUS
  • Diameter: 5/8″
  • Useable length: 9-1/2″
  • Overall length: 14″
  • OSHA Table 1 compliant drilling solution
  • For the regulation on respirable crystalline silica dust (29 CFR 1926.1153)
  • Dust Extraction Holes remove dust from the hole while drilling
  • Up to 2x faster chemical anchor preparation by creating a clean hole while drilling
  • 4-Cutter Carbide Tip delivers long life in concrete and concrete with rebar applications

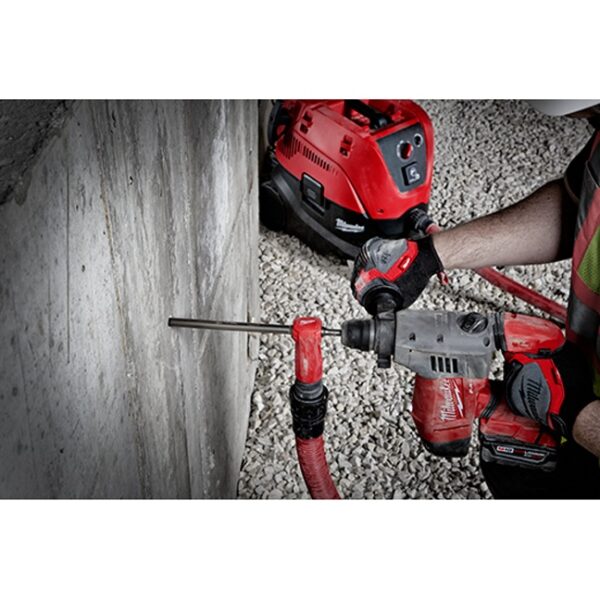

  • Universal adapter fits most common dust extractor vacuums
  • 48-20-2100 Replacement adapter available (sold separately)
  • Use in SDS-Plus Rotary Hammers in rotary hammer mode
  • ANSI specified to fit common anchors

Specifications:

  • Minimum dust extractor power rating: 1200 W
  • Maximum dust extractor hose length: 16ft. 5in. (5 m)
  • Dust extractor hose diameter: 1.25″ (32 mm) or larger
  • Minimum air flow: 82 CFM
  • Minimum air pressure: 92″ water lift
Available Model Variations
SDS Plus with 48-20-2100 SDS PLUS Vacuum Bit Adapter
Product no. Diameter Usable Length Overall Length
48-20-2102  7/16″ 7-7/8″ 13″
48-20-2106 1/2″ 7-7/8″ 13″
48-20-2110 9/16″ 9-1/2″ 14″
48-20-2114 5/8″ 9-1/2″ 14″
48-20-2118 3/4″ 9-1/2″ 14″

Milwaukee vacuum concrete bits are also available with SDS-MAX Shanks:

SDS MAX with 48-20-2150 SDS MAX Vacuum Bit Adapter
Product no. Diameter Usable Length Overall Length
48-20-2152 5/8″ 15-3/4″ 23″
48-20-2156 3/4″ 15-3/4″ 23″
48-20-2160 7/8″ 15-3/4″ 23″
48-20-2164 1″ 17-1/2″ 25″
48-20-2168 1-1/8″ 27″ 35″
48-20-2172 1-3/8″ 27″ 35″

Additional information

Weight 5 lbs
Brand Name

Diameter

5/8"

Length

14"

SDS

Plus
