Milwaukee 2878-20 M18 FORCE LOGIC 12T Latched Linear Crimper – Tool Only

Milwaukee 2878-20 M18 FORCE LOGIC 12T Latched Linear Crimper – Tool Only

The Milwaukee 2878-20 M18 FORCE LOGIC 12T Latched Linear Crimper – Tool Only includes:

• 2878-20 M18™ FORCE LOGIC™ 12T Latched Linear Crimper

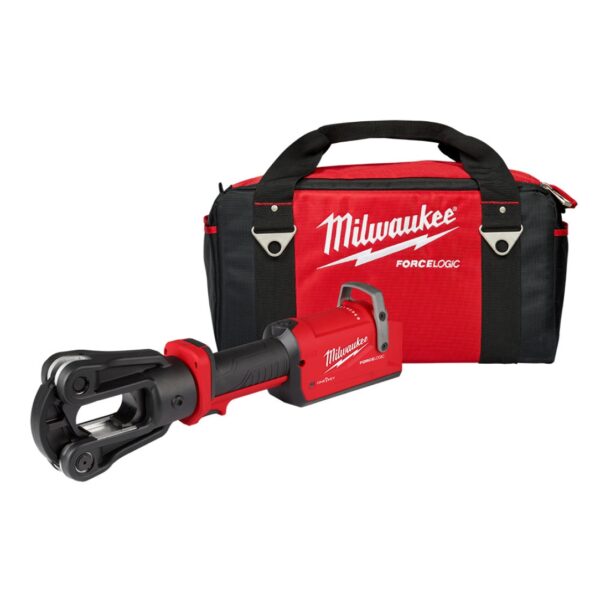

• Overhead Crimper Utility Bag

Features:

• Product no. 2878-20
• Lightest, most balanced inline design delivers maximum control
• PREDICTIVE FORCE MONITORING (PFM™):
  • • • Ensures full pressure reached every time
      • Constantly measures output force
      • Delivers the fastest crimp speeds across all connector types and sizes
• Fastest 12T crimper
• Designed to allow one-handed use in multiple orientations

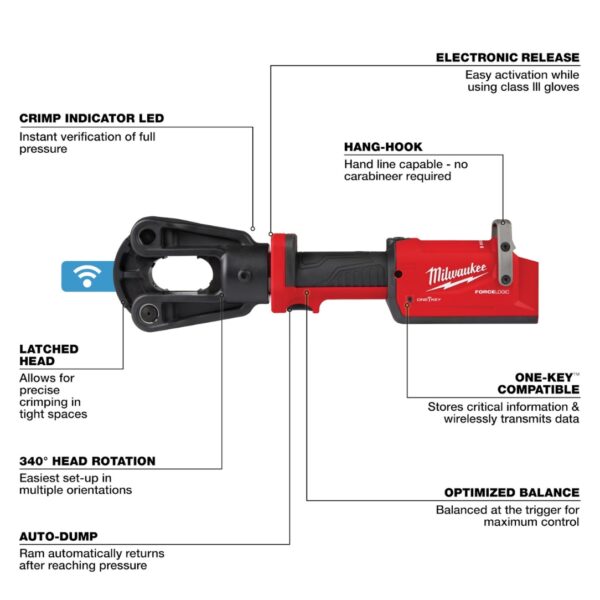

• Enlarged trigger and electronic release button:
  • • • Enable both left and right-handed users to easily activate the tool while wearing Class 3 gloves

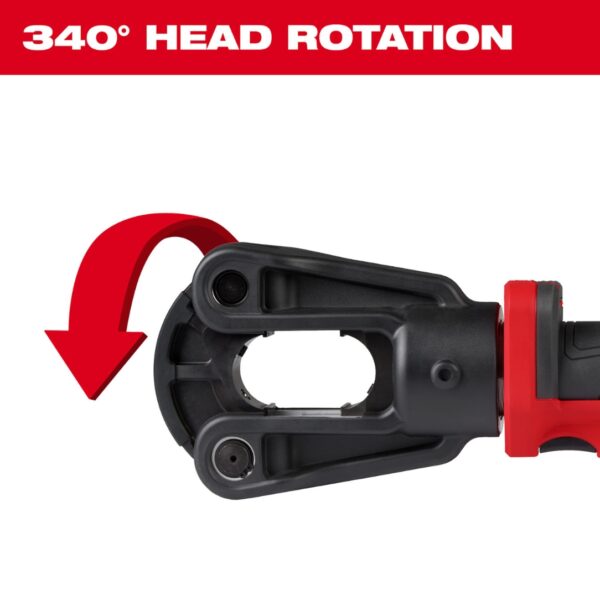

• Inline design & 340° rotating head provide easy access in tight spaces
• Quick release and push-to-close pin design provides easy access around splices
• Compatible with all industry standard U-dies
• Creates UL Classified crimps under UL 486A-B for:
  • • • #8 – 750 MCM Cu and Dual Rated lugs and splices
      • Across several leading manufacturers when used with corresponding Milwaukee® dies
• Compatible with the following when using Milwaukee EXACT™ 12T U-Dies:
  • • • Dual Rated Anderson, Blackburn®, Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts color-coded lugs and splices
• Pre-crimp battery check automatically ensures enough charge to complete each crimp

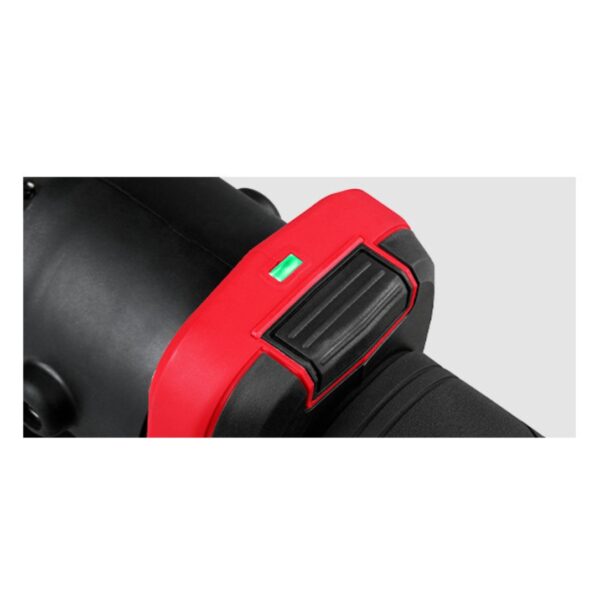

• Instant verification of successful cycle with green LED
• Auto-Dump:
  • • • Ram automatically returns after reaching pressure
• Hydraulic system optimized for consistent performance from -4° to 140° F
• Longer life with POWERSTATE™ brushless motor
• Weather protected electronics that keep dirt, dust & moisture out
• Records & stores every crimp made for professional report building through ONE KEY™
• Integration  with ONE KEY™ Technology provides:
  • • • Ability to store real-time crimp data
      • Professional report building
• Hank hook:
  • • • Hand line capable
      • No carabiner required
• Compatible with the entire M18™ System

Specifications:

• Voltage: 18V
• Battery Type: 18 Volt Lithium Ion
• Power Source: Cordless
• Motor Type: Brushless
• Material Composition: Steel
• Length: 21.3″
• Weight: 14.1 lbs
• Height: 5.6″
• Width: 3.25″
• Battery System: M18

Available model variations – sold separately:

• 2876-20 M18 FORCE LOGIC 11T Dieless Latched Linear Utility Crimper
• 2878K-20 M18 FORCE LOGIC 12T Kearney Linear Utility Crimper
• 2979-20 M18 FORCE LOGIC 6T Latched Linear Utility Crimper
