Milwaukee 2217-20 Digital Multimeter

Description

Milwaukee 2217-20 Digital Multimeter

Milwaukee 2217-20 Digital Multimeter includes:

• Electrical test lead set
• Dual banana thermocouple
• 2 – AA batteries

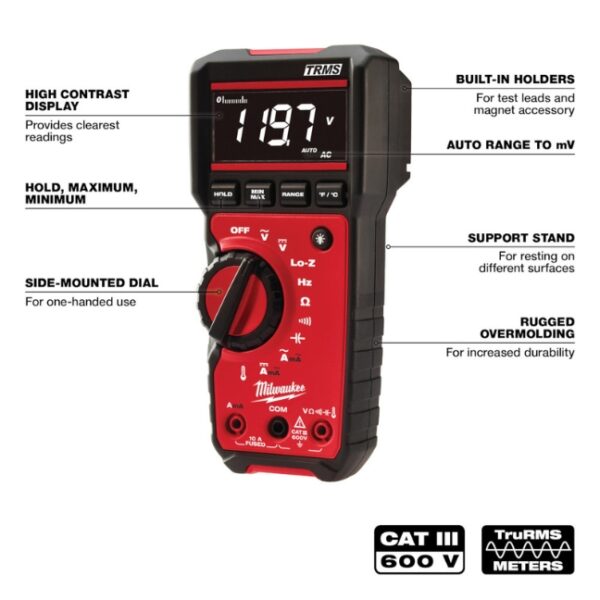

Features:

• Product no. 2217-20
• A True-RMS electrical tester for accurate measurement in all applications
• Auto range to millivolts and milliamp ranges
• Measures current up to 10 amps AC/DC
• Measures voltage range up to 600 volts AC/DC
• Lo-Z measurement eliminates ghost voltage
• Easy-read high contrast, white-on-black LCD display with backlight
• Durable over-molding increases user grip
• Runs on AA alkaline batteries

Specifications:

• Voltage: 600V AC/DC
• Current: 10.00A AC/DC
• Lo-Z: yes
• Safety rating: CAT III 600V
• Frequency: 10 Hz to 50.00 kHz
• Voltage AC/DC: 600V
• Resistance: 40 MΩ
• Continuity: Audible
• Capacitance: 1,000 μF
• Contact temperature range: -40°F to 752°F (-40°C to 400°C)
• HOLD/MIN/MAX: yes
• Bar graph: yes
• Accessory attachment: Magnetic meter holder
• Calibration needed: Yes – calibration service recommended once a year
• Switch type: Dial
• Length: 6-1/2”
• Tool warranty: 5 years
