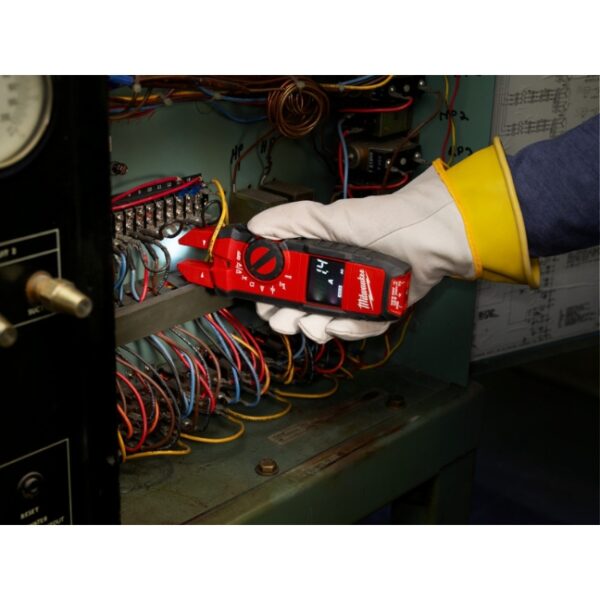

Milwaukee 2206-20 Fork Meter for HVAC/R

Description

Milwaukee 2206-20 Fork Meter for HVAC/R

The Milwaukee 2206-20 Fork Meter for HVAC/R  includes:

• Test lead set
• Dual banana thermocouple
• 2 – AA batteries

5 tools in 1

1. Current measurement
2. Temperature measurement
3. Voltage measurement
4. Voltage detection
5. Task lighting

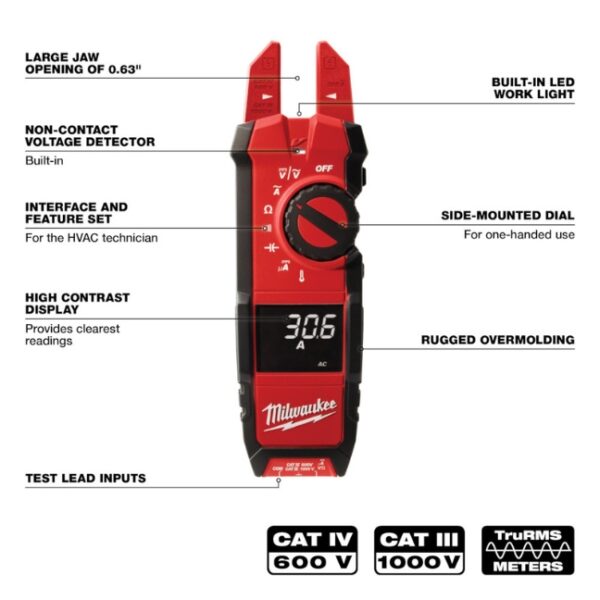

Features:

• Product no. 2206-20
• A heavy duty True-RMS electrical tester for professional residential, industrial and commercial applications
• Wide 0.63″ fork opening
• Measures current up to 200 amps
• Measures voltage range up to 1000 volts AC/DC
• Thermocouple (dual banana) input for contact temperature measurement
• Easy-read high contrast, white-on-black display with backlight
• Durable over-molding increases user grip
• Runs on AA alkaline batteries

Specifications:

• Safety rating: CAT IV 600V / CAT III 1000V
• Flame rectification: 600 μA DC
• Microamps DC: 1,000 μA
• Voltage AC/DC: 1000V
• Resistance: 40MΩ
• Continuity: Audible
• Capacitance: 1,000 μF
• Contact temperature range: -40°F to 752°F (-40°C to 400°C)
• Switch type: Dial
• Length: 8″
• Tool warranty: 5 years
