Microjig MB-050-025ST MATCHFIT 1/4″ Relief Router Bit – 1/2″ Shank

Microjig MB-050-025ST MATCHFIT 1/4″ Relief Router Bit – 1/2″ Shank

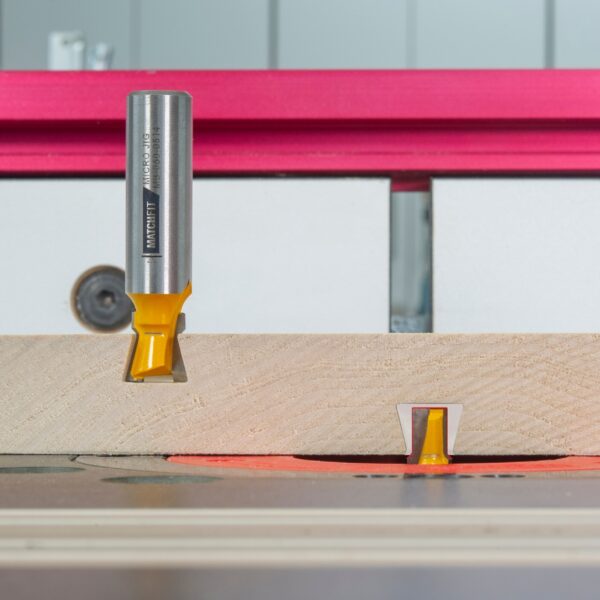

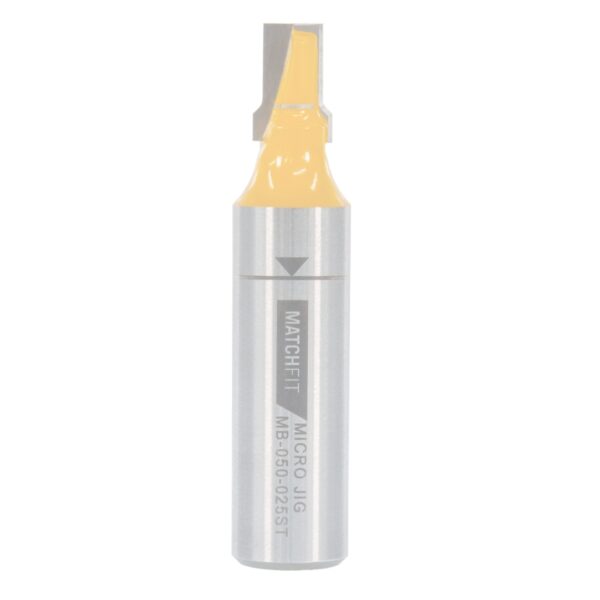

The Microjig MB-050-025ST MATCHFIT 1/4″ Relief Router Bit – 1/2″ Shank:

Features:

• Efficient waste removal reduces router strain by clearing 55% of the material before your dovetail bit even touches the wood
• Laser-etched depth guide allows precise, fast depth adjustments for consistent cuts
• Round-over feature smooths the top shoulders of dovetail grooves to prevent tearout and minimize sanding
• Prolongs dovetail bit life by reducing wear, saving you time and money on replacements
• High-quality carbide construction ensures clean, accurate cuts in plywood, MDF, and hardwood
• 3° up shear design enhances surface finish while reducing vibration
• Extra-wide shoulder increases cutting stability and lowers noise levels
• Compatible with all MatchFit dovetail components for maximum versatility in custom jigs and fixtures

Specifications:

• Shank size: 1/2″ (12.7 mm)
• Through hole diameter: 1/4″ (6.35 mm)
• Material capacity: Up to 25 mm (1″) thick
• Relief cut: Removes approximately 55% of waste before dovetail pass
• Shear angle: 3° up shear for enhanced chip ejection and clean edges
• Construction: Carbide-tipped, laser-etched for depth reference
• Use cases: Ideal for routing dovetail grooves, jigs, fixtures, and workholding systems
• Made in: USA
