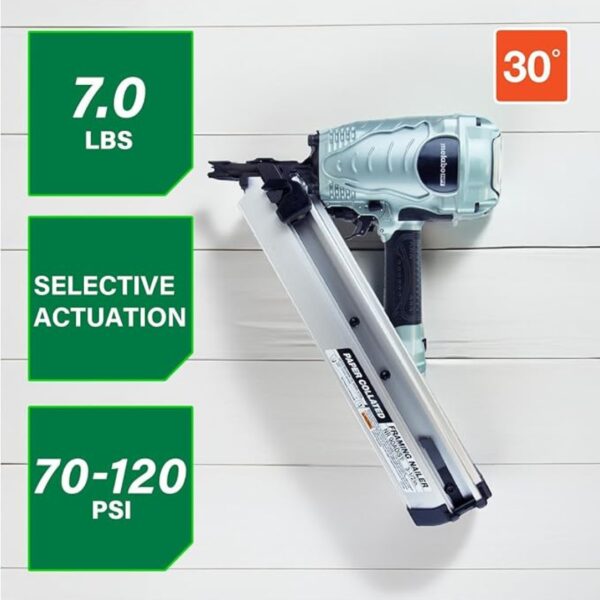

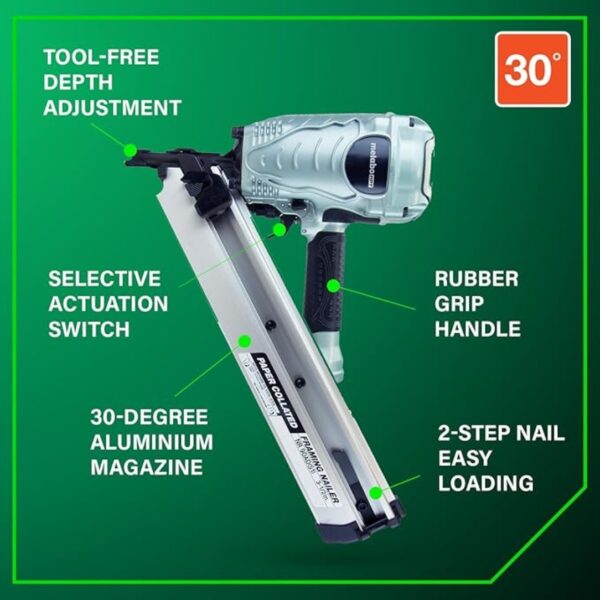

Metabo HPT NR90ADS1 3-1/2″ Clipped Head Framing Nailer

Description

Metabo HPT NR90ADS1 3-1/2″ Clipped Head Framing Nailer

Metabo HPT NR90ADS1 3-1/2″ Clipped Head Framing Nailer includes:

• Safety glasses

Features:

• Product no. NR90ADS1
• Head guard design for quicker disassembly during maintenance
• Lightweight at 7 lbs and well-balanced for ease of maneuverability and less user fatigue
• Selective actuation switch for quick changes between sequential and contact nailing
• Accepts 2″ up to 3-1/2″ paper collated framing nails
• Tool-less depth adjustment dial
• Two-piece anodized aluminum magazine makes repairs or replacements easy
• Two-step nail loading reduces downtime
• Open nose design makes clearing nail jams easy
• Rubber grip over-mold on the handle and trigger provides a secure grip
• Rubber grip on the backside of the nailer adds comfort when nailing in overhead applications
• Powerful nailer drives 3-1/2″ X .131 into engineered lumber
• Selector switch for sequential or contacting nailing
• Tool free depth adjustment
• Lightest weight in its class
• Typical applications:
  • • • Wall and floor framing
      • Truss build up
      • Window build up
      • Subflooring
      • Roof decking
      • Wall sheathing
      • Mobile home construction
      • Modular home construction

Specifications:

• Magazine capacity: 86 to 94 (.131″ diameter) nails
• Magazine angle: 35º
• Nail type: 35º Clipped head paper collation
• Fastener Range: 2″ to 3-1/2″ (50 mm to 90 mm)
• Fastener Diameter: .113″ to .148″ (2.9 mm to 3.3 mm)
• Operating Pressure: 70 to 120 PSI (4.9 to 8.3 bar)
• Air inlet: 3/8″ NPT thread
• Dimensions (LxWxH): 18-3/16″ x 4-15/16″ x 12-11/16″ (462 mm x 125 mm x 322 mm)
• Weight: 7.0 lbs (3.2 kg)
