Description

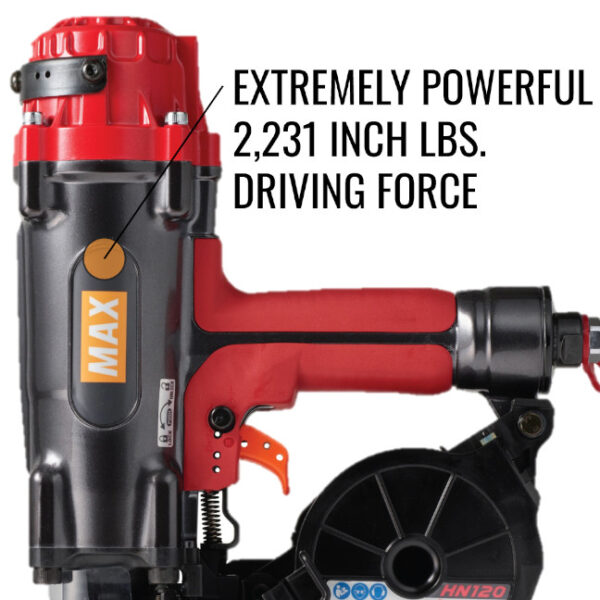

Max Tools HN120 High Pressure 2-1/2″ Concrete / Steel Pinner
The Max Tools HN120 High Pressure 2-1/2″ Concrete / Steel Pinner:
- Product no. HN120
- Nailer series: PowerLite®
- Operating pressure range: 210 PSI to 320 PSI
- Sequential fire trigger
- A faster, safer and a more cost effective alternative to powder actuated tools
- Doesn’t require a license to operate
- At only 6.4lbs, this lightweight tool has less recoil than P.A.T tools

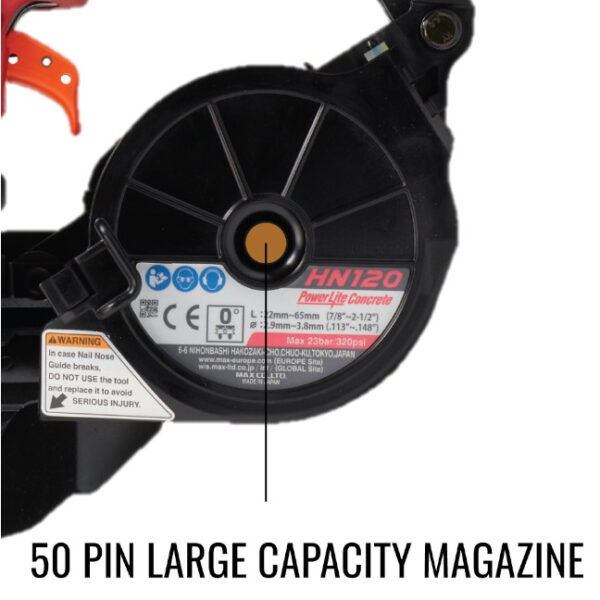

- Holds 50 pins to save reloading time and operating cost
- Self-cleaning maintenance-free end cap filter:
-
-
- Prevents foreign substances from entering the tool
- Inside of tool kept clean so internal components last longer
- Foreign substances ejected automatically when air hose disconnected
-

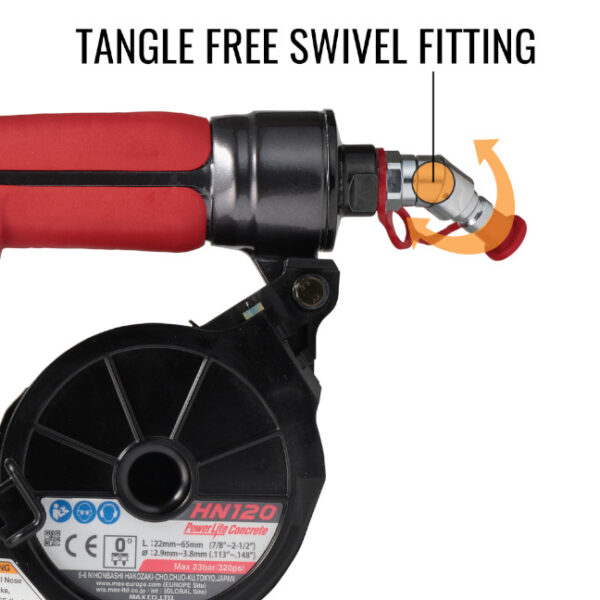

- Tangle free swivel plug prevents the air hose from tangling no matter what angle the tool is being held
-
Typical Applications:

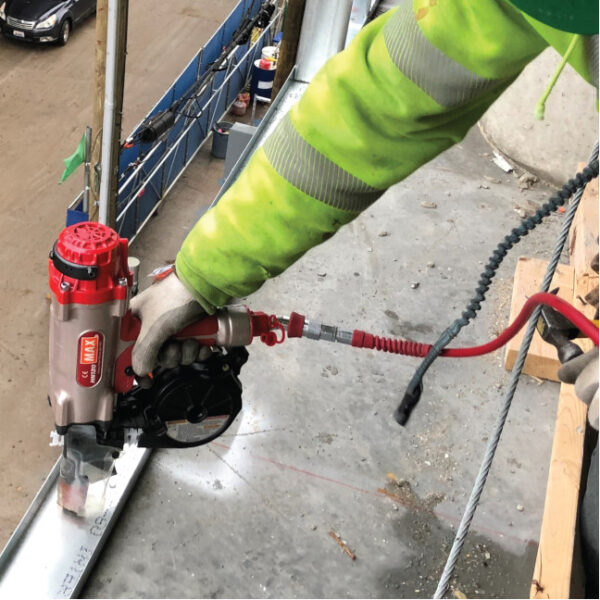

- Metal track to concrete
- Metal track to steel

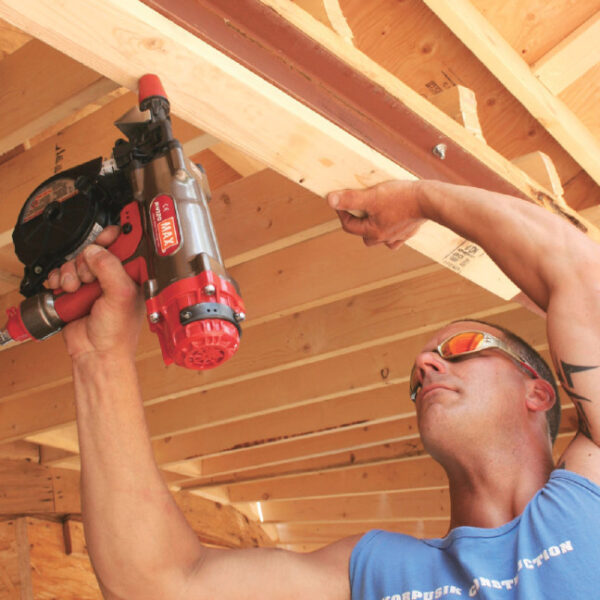

- Wood to concrete
- Waterproof sheet to concrete
Specifications
|
|
---|---|
WEIGHT
|
6.4 lbs
|
DIMENSIONS
|
15-3/4″(H) x 3-3/8″(W) x 12-3/8″(L) |
MINIMUM OPERATION PRESSURE
|
210 PSI
|
MAXIMUM OPERATION PRESSURE
|
320 PSI
|
AIR INLET SIZE
|
7/16″
|
MAGAZINE CAPACITY
|
50
|
DEPTH CONTROL
|
No
|
JAM CLEARING
|
No
|
TRIGGER TYPE |
Sequential Fire Trigger |
AIR CONSUMPTION
(FT3/CYCLE) |
0.166
|
ACCESSORIES
|
Safety glasses, Nose attachments, Carry case
|
Available fasteners – sold separately:
- CP-W .133″ Series Step Pins for Steel I-Beam and Concrete
- CAP .133″ Series: Knurl Pins for Cold Formed Steel
- CP-W .133″ Series: Step Top Hat Pins for Steel I-Beam and Concrete
- CP-C .140″ W/O Washer Series: Smooth Pins for Concrete
- CP-C .145″ Series Smooth Pins for Concrete
- CP-C AccuEmbed .157″ Series: Smooth Pins for Concrete
MAX® PowerLite High Pressure Air System Compressors and Accessories – sold separately:
- AKHL1260EX High Pressure 500 PSI PowerLite Air Compressor – 5 Tank
- AKHL1260E High Pressure 500 PSI PowerLite Air Compressor – 2 Tank
- KH50FT 50ft 500 PSI High Pressure Air Hose
- KH100FT 100ft 500 PSI High Pressure Air Hose
- SD630A2 100ft 500 PSI High Pressure Air Hose With Wheel Drum
- ARC-H1 High Pressure Air Splitter – 1 Male to 2 Female Fittings
