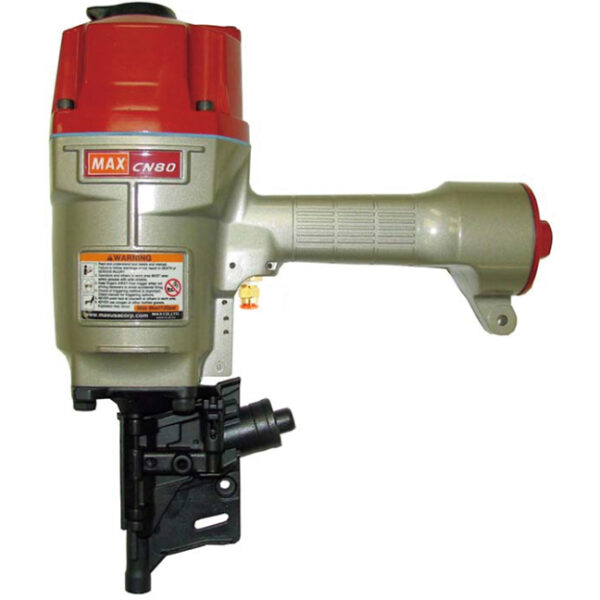

Max Tools CN80/PAL Pneumatic Pallet Nailer up to 3-1/4″ for Automated Machines

Description

Max Tools CN80/PAL Pneumatic Pallet Nailer up to 3-1/4″ for Automated Machines

Max Tools CN80/PAL Pneumatic Pallet Nailer up to 3-1/4″ for Automated Machines:

Features:

• Product no. CN80/PAL
• Designed exclusively for use on  automated machines
• Safely drives 2” to 3-1/4” wire welded 15º coil nails
• Rapid fire trigger
• Die cast aluminum construction contributes to its lightweight
• Comfortable rubber grip:
  • • • Protects hands from friction with the tool and provides slip resistant handling
• Typical Applications:
  • • • Pallets
      • Crating

Specifications:

• Fasteners:
  • • • Collation Type: Wire
      • Nail Gun Angle: 15º
      • Strip or Coil: Coil
      • Compatible Fastener Types: Flat wire welded nails
      • Minimum Fastener Size: 2″
      • Maximum Fastener Size: 3-1/4″
      • Minimum Nail Diameter: 0.099″
      • Maximum Nail Diameter: 0.131″
• Tool:
  • • • Weight: 7.6 lbs
      • Dimensions: 14-1/4″(H) x 4-3/16″(W) x 12-1/8″(L)
      • Minimum Operating Pressure: 70 PSI
      • Maximum Operating Pressure: 120 PSI
      • Air Inlet Size: 3/8″
      • Depth Control: No
      • Jam Clearing: No
      • Trigger Type: Remote control valve
      • Air Consumption: 0.06 ft³per cycle

Click here for more MAX Tools, Fasteners and Accessories

Click here for a selection of 15º Coil Nails

Optional Accessories for Coil Nailers for Automated Machines – sold separately:

• RC70: 1/4″ Remote Control Valve for CN70 & CN80 Coil Nailers
• XB93106: 5/32″ Remote Control Valve for CN70 & CN80 Coil Nailers
• BOOSTER: for more driving power for CN70 & CN80 Coil Nailers
