Description

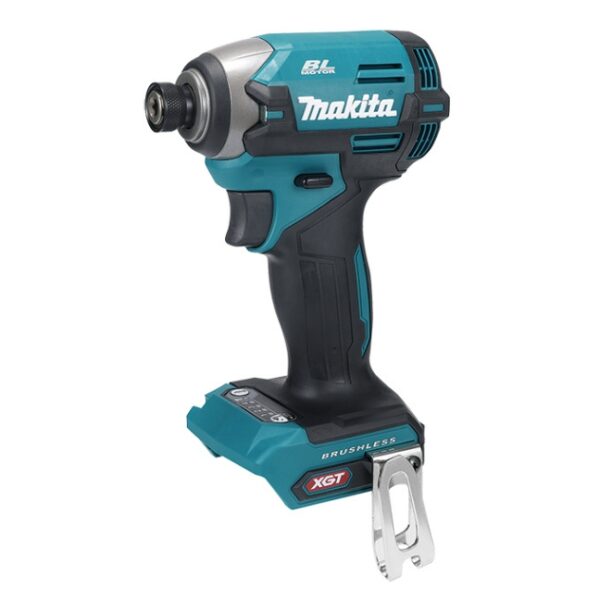

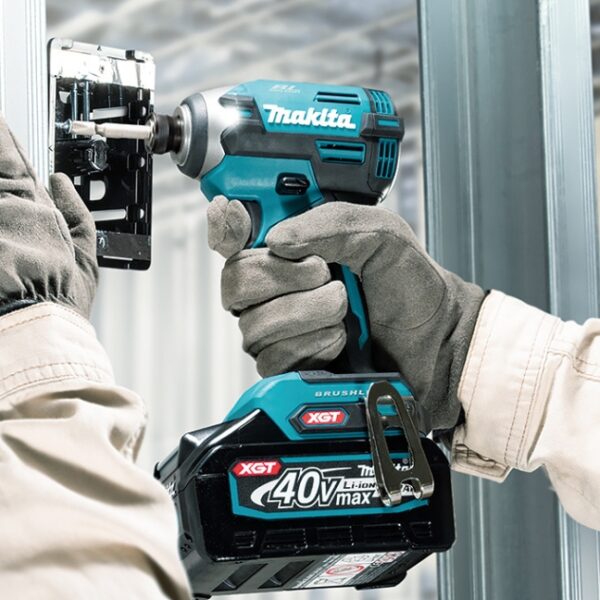

Makita TD003GZ 40V MAX XGT 1/4″ Brushless Impact Driver with XPT-Tool Only
The Makita TD003GZ 40V MAX XGT 1/4″ Brushless Impact Driver with XPT includes:
- Tool only – batteries and charger sold separately
- Belt hook
Features:
- Product no. TD003GZ
- Makita-built brushless motor delivers 1,860 in-lbs of Max Torque
- eXtreme Protection Technology (XPT):
-
-
- Maximizes protection against dust, debris and liquids
- Optimizes performance in extreme conditions
-
-
- 4 Speed ranges:
-
-
- 0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM
-
-
- 4 Impacts per Minute ranges:
-
-
- 0-1,400/ 0-2,600/ 0-3,600/ 0-4,100 IPM
-
-

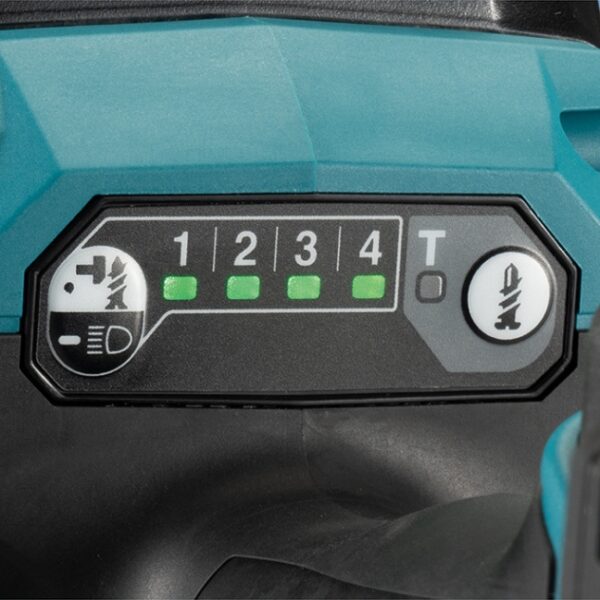

- 4 stage impact speed selection + TEK 1 mode:
-
-
- ensures precise fastening
- Prevents damage to fasteners
-
-
- LED Light mode to illuminate dark areas
- ‘Cam-out’ elimination mode:
-
-
- Operates at low speed until fastening begins
- Eliminates ‘cam-out’ and cross-threading
-
-
- Fastening capacities:
-
-
- Machine screw: M4 – M8 (5/32″ – 5/16″)
- Standard bolt: M5 – M16 (3/16″ – 5/8″)
- High tensile bolt: M5 – M14 (3/16″ – 9/16″)
-
-
- One-stage TEK modes reduce impact power during final stages of fastener seating in thin metals
- Enhanced anvil holder rigidity with ball bearings reduces bit wobbling
- Brushless DC motor:
-
-
- High power to weight and size ratio
- Generates less heat buildup
- Ideal for prolonged use in manufacturing / production applications
-
-
- Battery protection system:
-
-
- Provides over-discharge, temperature and current protection
- Enhances performance, battery cycle life and overall battery life
-
-
- Constant speed control maintains constant speed under heavy load

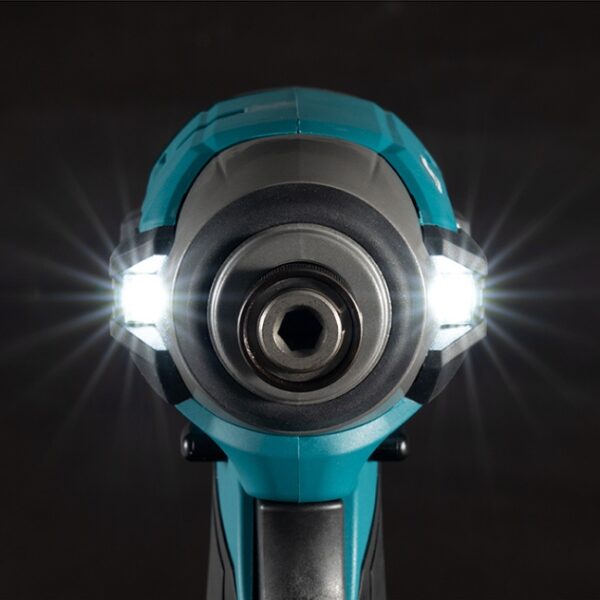

- Twin LED job lights with pre-glow and afterglow features
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Specifications:
- Battery voltage and chemistry: 40V Max Lithium Ion
- Shank: 1/4″ Hex
- No Load Speed ranges: 0-1,100/ 0-2,100/ 0-3,200/ 0-3,700 RPM
- Impacts Per Minute ranges: 0-1,400/ 0-2,600/ 0-3,600/ 0-4,100 IPM
- Maximum Torque: 1,860 in. lbs (210 Nm)
- Vibration level: 11.9 m/s2
- Noise level: 95 dB(A)
- Overall length: 4-3/4″ (120 mm)
- Net weight: 2.3 lbs (1.0 kg)
Also available: TD001GZ XGT 40V Max Brushless 1/4″ Impact Driver-Tool Only
