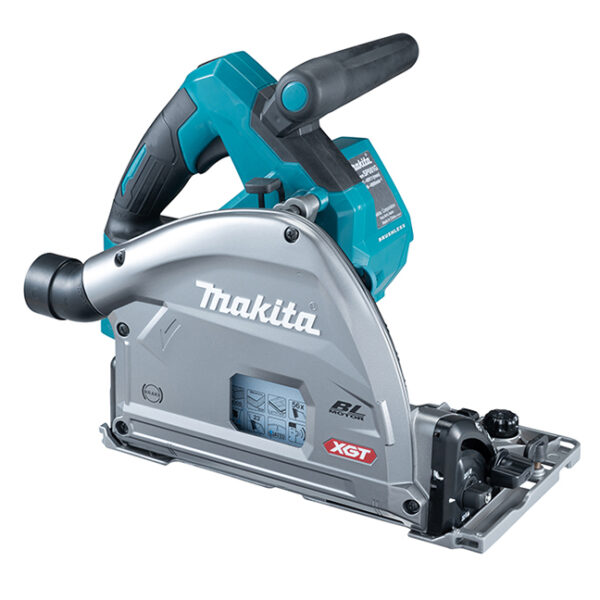

Makita SP001GZ05 40V MAX XGT BL 6-1/2″ Brushless Plunge Cut Circular Saw with 55″ Guide Rail

Description

Makita SP001GZ05 40V MAX XGT BL 6-1/2″ Brushless Plunge Cut Circular Saw with 55″ Guide Rail

The Makita SP001GZ05 40V MAX XGT BL 6-1/2″ Brushless Plunge Cut Circular Saw with 55″ Guide Rail includes:

• Tool only – batteries and charger sold separately
• 6-1/2″ C.T. Blade 56T (B-57342)
• Hex Wrench 5 (783203-8)
• Guide Rail (194368-5)
• Interlocking Case (197213-3)

Also available with no Guide Rail: SP001GZ02

Features:

• Model model no. SP001GZ05
• 2-Stage Safety Switch
• Electric Brake
• Soft Start
• AWS (Auto-Start Wireless System):
  • • • Wireless dust collection technology
      • Uses Bluetooth® technology to communicate between tool and vacuum
      • Enables wireless control when used with Makita AWS cordless tools
• Brushless DC motor:
  • • • High power to weight and size ratio
      • Generates less heat buildup
      • Ideal for prolonged use in manufacturing / production applications
• Battery protection system:
  • • • Provides over-discharge, temperature and current protection
      • Enhances performance, battery cycle life and overall battery life
• Magnesium diecast baseplate for high performance and lightweight
• Constant speed control maintains constant speed under heavy load
• Overload protection prevents motor burnout due to current overload
• Depth stopper enables splinter free cutting
• VS dial enables operator to adjust cutting speed based on materials or application
• LED charge level indicator displays approximate remaining battery power
• Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
• Soft start feature gradually increases speed to eliminate start up shock
• Bevel capacity of -1^o – 48^o with positive stop at 22.5^o and 45^o
• Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

Specifications:

• Battery voltage and chemistry: 40V Lithium Ion
• Blade diameter: 6-1/2″ (165 mm)
• Arbor size: 13/16″ (20 mm)
• Maximum Cutting Depths:
  • • • 2-3/16″ (56 mm) @ 0^o
      • 1-9/16″ (40 mm) @ 45^o
      • 1-1/2″ (38 mm) @ 48^o
• No load speed range: 2,500 to 4,900 RPM
• Vibration level: 2.5 m/s²
• Noise level: 89 dB(A)
• Overall length: 14-1/2″ (375 mm)
• Net weight: 8.2 lbs (3.7 kg)

Compatible with Makita Guide Rails and accessories (sold separately) including:

• 75″ (1,900 mm) Guide Rail – 194925-9
• 118″ (3,000 mm) Guide Rail – 194367-7
• Guide Rail Connectors P-20177
• Guide Rail Clamps 194385-5
