Description

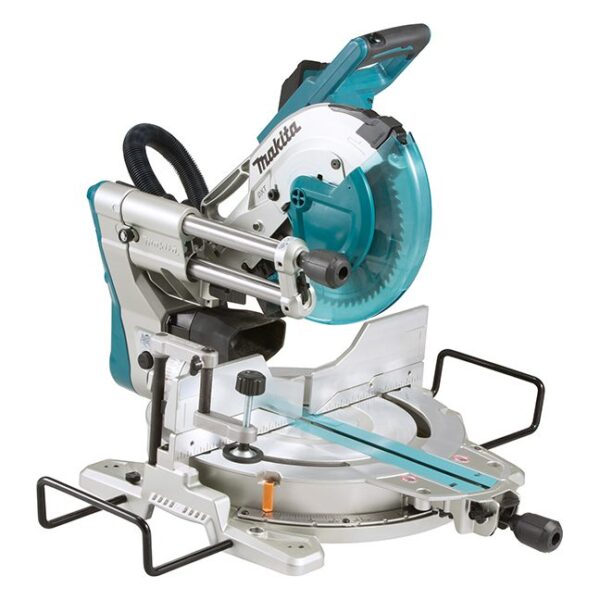

Makita LS1019 10″ Sliding Compound Mitre Saw
The Makita LS1019 10″ Dual Sliding Compound Mitre Saw includes:
- 10″ 60TPI Carbide tooth blade
- Hex wrench
- Dust bag
- Vertical vise
- Triangle rule
- Dust nozzle
- 2 – Holders
- Wrench holder
Maximum cutting capacities:
- 12″ in 2X material
- 6-5/8″ Nested crown moulding
- 5-1/4″ Vertical baseboard
Features and Specifications:
- Close To Wall “Zero Clearance” Design
- Incorporates Makita’s Deep And eXact Cutting Technology (DXT)
- Rail forward design enables saw to be placed against wall to maximize effective workspace
- 3 stage gear reduction system increases capacity when cutting vertical baseboard or nested crown molding
- 1-3/16″ guide rail diameter increases stability and cutting precision
- Integrated guide fence and lower fence for greater rigidity and support of materials
- Fence secures to holders to prevent damage and/or loss
- Front bevel knob for easy adjustments without reaching
- Electronic speed control maintains constant speed under heavy load
- Soft start feature gradually increases speed to eliminate start up shock
- No load speed: 4,300 RPM
- Sliding Rail Mechanism w/3 Linear Ball Bearings increases rigidity for precise, adjustment-free cuts
- Left Side Sliding Fence adjusts outwards when bevel cutting or inwards to support of small or delicate materials
- Soft Start eliminates start up shock by gradually increase speed
- Large mitre table ideal for use with wide materials
- Easy to operate mitre angle lock with free spin releasing lever and locking lever
- Dual dust collection ports for excellent dust collection
- Horizontal handle design
- 2 stage safety switch for increased operator safety
- Ergonomic horizontal soft rubber grip design for vibration absorption and comfortable operation
- Bevel capacity: 48º Left or Right with Positive Stops at 0º, 22.5º, 33.9º, 45º & 48º
- Mitre capacity: 60º Left or 60º Right with Positive Stops at 0º, 15º, 22.5º, 31.6º, 45º & 60º
- Blade diameter: 10″ (255 mm)
- Arbor size: 5/8″ (15.88 mm)
- No load speed: 3,200 RPM
- Amperage: 15.0 A (120V AC)
- Vibration level: 2.5 m/s²
- Noise level: 91 dB(A)
- Saw overall dimensions: 31-3/4″L x 25″W x 26″H (805 mm x 644 mm x 660 mm)
- Net weight: 57.6 lbs (26.1 kg)
bilgeorge –
love the saw .Retired my 25 year old Makita for this one . thought it had a laser.. it doesn’t . smooth soft start not too loud . Needs a big stand with wheels or a strong back …but they all do now
Rob Visch –
I would not buy this saw. The lock lever broke after a couple of days use. I exchanged it and the same thing happened again. When I took it to the service centre, they simply put in the same cheap part. Makita really goofed on this one and they haven’t taken the responsibility to make it right.
Gord –
Hooked to a vacuum, dust collection on this saw is comparable to my Kapex.
