Description

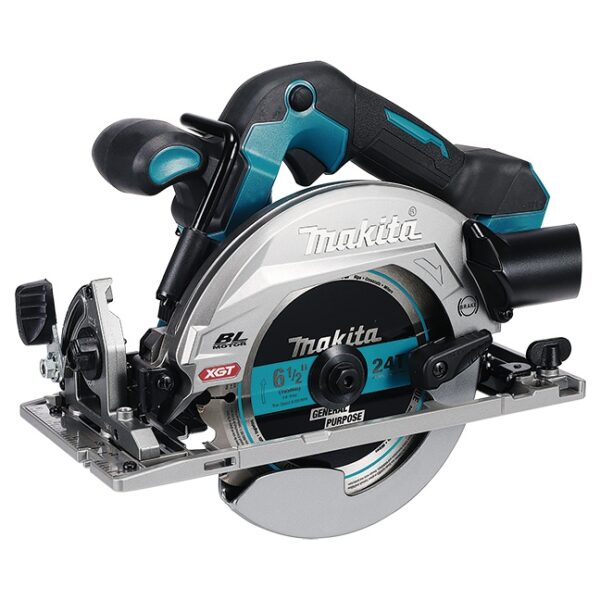

Makita HS012GZ 40V MAX XGT 6-1/2″ Brushless Circular Saw with XPT and AWS – Tool Only
The Makita HS012GZ 40V MAX XGT 6-1/2″ Brushless Circular Saw with XPT and AWS includes:
- Tool only – batteries and charger sold separately
- 6-1/2″ C.T. Blade 24T (A-85092)
- Guide Rule (164095-8)
- Dust Nozzle (196952-2)
- Hex Wrench 5 (783203-8)
Features:
- Product no. HS012GZ
- Makita-built brushless motor:
-
-
- Delivers 5,200 RPM for faster cutting performance
- Eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
-
-
- 2-1/4″ Cutting capacity at 90°
- Dual LED lights illuminate the work area
- Compact and ergonomic design at only 11-3/4″ in Length
- Die-cast magnesium base, blade guard, and blade cover provide a lightweight design built to last; weighs only 5.6 lbs
- AWS (Auto-Start Wireless System):
-
-
- Uses Bluetooth® technology to communicate between tool and vacuum
- Enables wireless control when used with Makita AWS cordless tools
-
-
- Lock-off button minimizes accidental start up

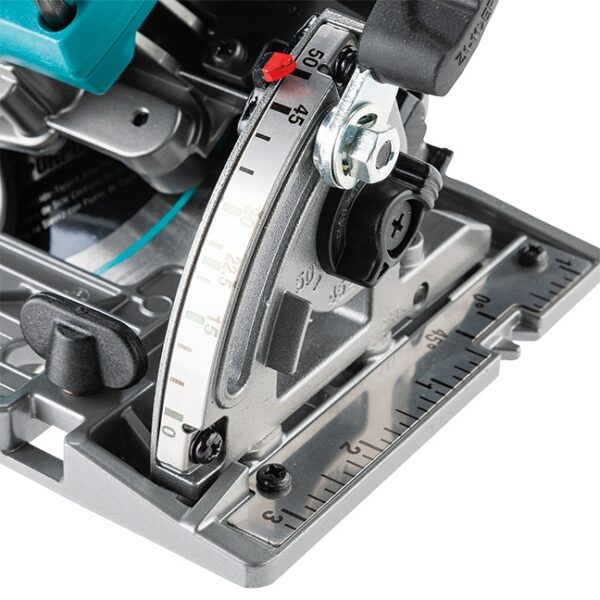

- Bevel capacity of 0°- 50° with positive stops at 22.5°, 45°, and 50°
- Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
- Twin LED lights with pre-glow and after-glow functions for better illumination and more accurate work
- Soft start suppresses start-up reaction for more control and better accuracy
- Constant speed control maintains speed and minimizes reduction in rotation speed under load
- Anti-restart function engineered to minimize motor start up when battery is inserted with switch locked on
- Soft grip to maximize comfort on the job
- Extreme Protection Technology (XPT):
-
-
- Engineered for improved dust and water resistance for operation in harsh conditions
-
-
- Rafter hook for storage convenience
- Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
- Battery voltage and chemistry: 40V Max Lithium Ion
- Blade diameter: 6-1/2″ (165 mm)
- Arbor: 5/8″ (15.88 mm)
- Maximum cutting capacities:
-
-
- 0o Bevel: 2-1/4″ (57 mm)
- 45o Bevel: 1-5/8″ (41 mm)
- 50o Bevel: 1-7/16″ (37 mm)
-
-
- Bevel capacity:
-
-
- 0o to 50o
- Positive stops at 22.5°, 45°, and 50°
-
-
- No load speed: 5,200 RPM
- Vibration level: 2.5 m/s²
- Noise level: 91 dB(A)
- Overall length: 11-3/4″ (298 mm)
- Net weight: 5.6 lbs (2.5 kg)
