Description

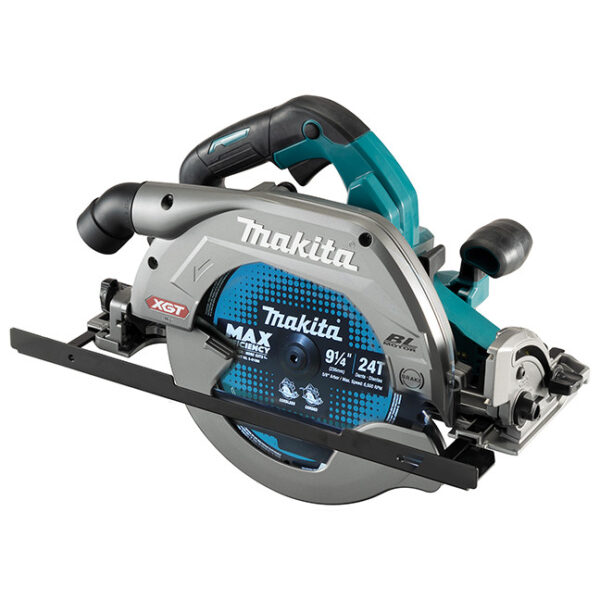

Makita HS009GZ 40V MAX XGT Brushless Cordless 9-1/4″ Circular Saw w/Guide Rail Base – tool only
The Makita HS009GZ 40V MAX XGT Brushless Cordless 9-1/4″ Circular Saw w/Guide Rail Base – tool only includes:
- Tool only – batteries and charger sold separately
- 9-1/4″ CT Blade 24T (E-01965)
- Hex Wrench 6 (783204-6)
- Sub Base (162687-7)
Features:
- Product no. HS009GZ
- AWS (AutoStart Wireless System):
-
-
- Uses Bluetooth® technology to communicate between tool and vacuum
- Enables wireless control when used with Makita AWS cordless tools
-
-
- Brushless motor
-
-
- Generates less heat buildup
- Ideal for use in prolonged manufacturing / production applications
-
-
- eXtreme Protection Technology (XPT):
-
-
- Maximizes protection against dust, dirt and debris
- Optimizes performance in extreme conditions
-
-
- Quick adjust blade guard lever allows operator to retract guard when making mitre or bevel cuts
- Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
- Constant speed control maintains consistent speed under heavy load
- Anti-restart feature prevents accidental startup of tool during battery changing when switch is locked in the on position
- Soft start gradually increases speed to eliminate start up shock

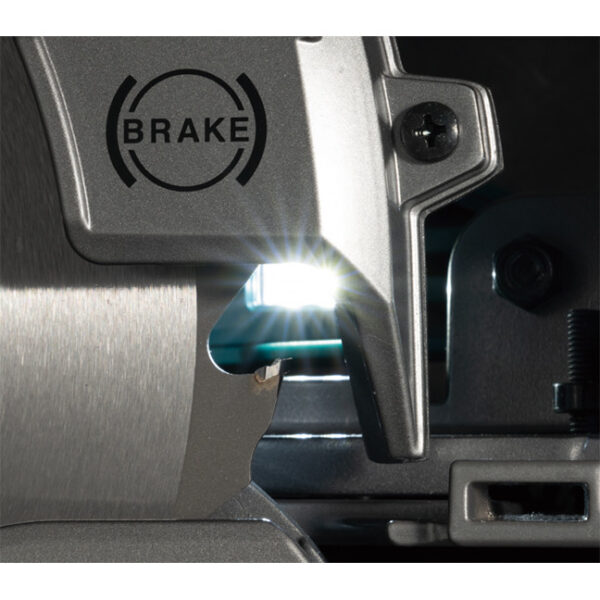

- Twin LED job light with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
- Trigger-lock button prevents accidental start-up for increased safety

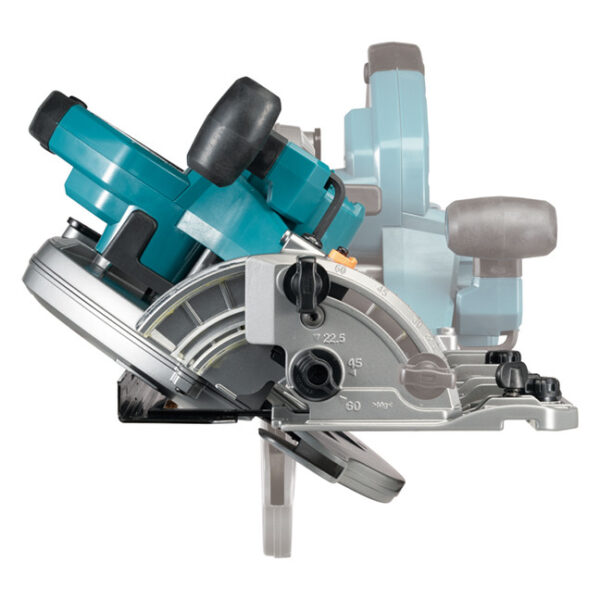

- Bevel capacity of -1o – 60o with positive stop at 22.5o and 45o
- 360o rotating dust nozzle provides maximum convenience and maneuverability
- High performance and lightweight design with magnesium blade case and base plate
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation

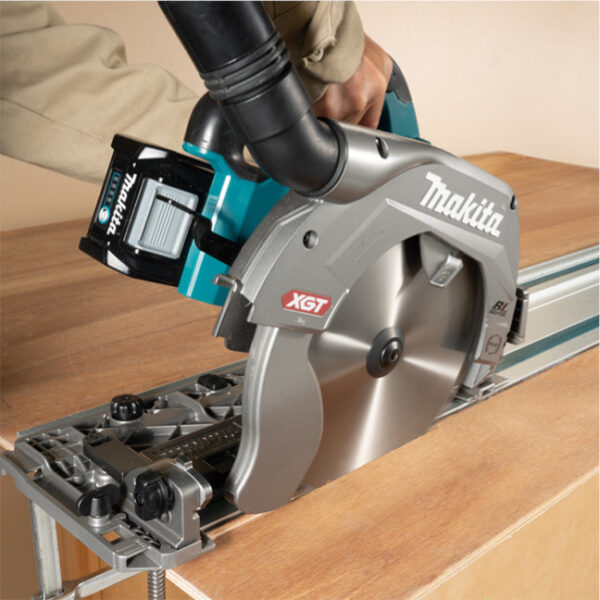

- Guide rail compatible base design requires no additional adapters
Use with the following Makita Guide Rails:
- 35″ – Part no. 199140-0
- 55″ – Part no. 194368-5
- 59″ – Part no. 199141-8
- 75″ – Part no. 194925-9
- 118″ – Part no. 194367-7
Specifications:
- Battery voltage and chemistry: 40V Lithium Ion
- Blade diameter: 9-1/4″ (235 mm)
- Arbor: 5/8″ (15.88 mm)
- No load speed: 4,000 RPM
- Maximum cutting capacities:
-
-
- 0º Bevel: 3-3/8″ (85 mm)
- 45º Bevel: 2-3/8″ (61 mm)
- 48º Bevel: 1-3/4″ (44 mm)
-
-
- Vibration level 2.5 m/s2
- Noise level: 94 dB(A)
- Overall length: 16-1/4″ (413 mm)
- Net weight: 9.7 lbs (4.3 kg)
