Description

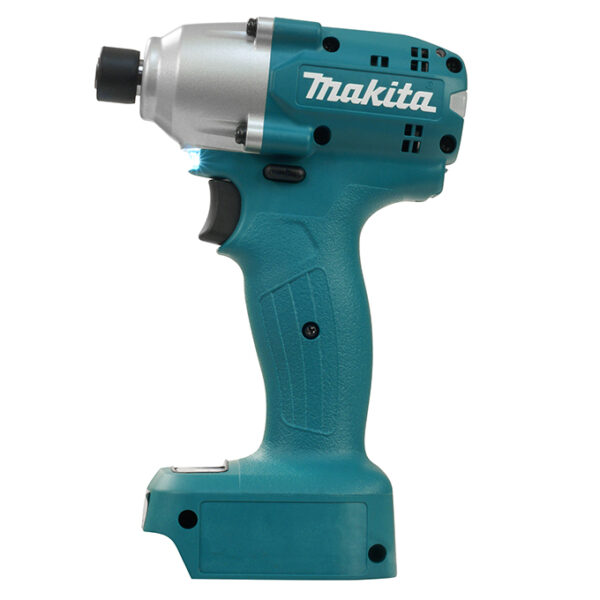

Makita DTDA040Z 14.4V 1/4″ Brushless Impact Driver – 310 in-lbs Torque
The Makita DTDA040Z 14.4V 1/4″ Brushless Impact Driver – 310 in-lbs Torque includes:
- Tool only – batteries and charger sold separately
Brushless DC motor:
- High power to weight ratio
- Generates less heat buildup
- Ideal for prolonged use in manufacturing and production applications
Automatic battery shut-off system:
- Warns operator visually and audibly
- Prevent incomplete fastening due to low remaining battery power
Automatic impact stop system:
- Prevents over or under-tightening
- Stops the motor after completing a pre-set number of impacts
Torque stabilization system:
- Detects remaining battery capacity
- Ensures consistent delivery of speed torque versus impact time
More Features:
- Variable Speed
- Reversible
- Constant Speed Control
- USB connectivity enables operator to adjust impact time and check rundown status
- LED display panel enables number of impacts to be easily set and quickly referenced during operation
- Impact indicator lamp provides visual indication of successful or failed fastening
- Dual ball bearings minimize bit wobbling for fastening accuracy
- Twin LED job light with pre-glow and after-glow features
- Short stroke variable speed trigger minimizes operator fatigue during prolonged operation in manufacturing/production applications
- Colour coded (Black) front and rear plates provide fast recognition among similar models
- Ergonomic rubber grip design for comfortable operation and maximum operator control
Specifications:
- Battery voltage and chemistry: 14.4V lithium-ion
- Drive type: 1/4″ Hex
- No Load Speed Range: 0 to 2,400 RPM
- Impacts Per Minute Range: 0 to 3,700 IPM
- Maximum fastening torque: 310 in-lbs (35 Nm)
- Vibration level: 4.5 m/s²
- Noise level: 90 dB(A)
- Width: 2-15/16″ (74 mm)
- Height with battery: 9-3.8″ (239 mm)
- Length: 5-1/2″ (139 mm)
- Net weight: 1.8 lbs (0.8 kg)
DTDA Series 1/4″ Impact Driver Model Variations |
|||
| Model no. | Torque | RPM | IPM |
| DTDA040Z | 310 in-lbs | 0 to 2,400 | 0 to 3,700 |
| DTDA070Z | 575 in-lbs | 0 to 2,500 | 0 to 3,700 |
| DTDA100Z | 840 in-lbs | 0 to 2,700 | 0 to 3,300 |
| DTDA140Z | 1,240 in-lbs | 0 to 2,700 | 0 to 3,300 |
Click here for a selection of 1/4″ Hex Driver Bits
