Description

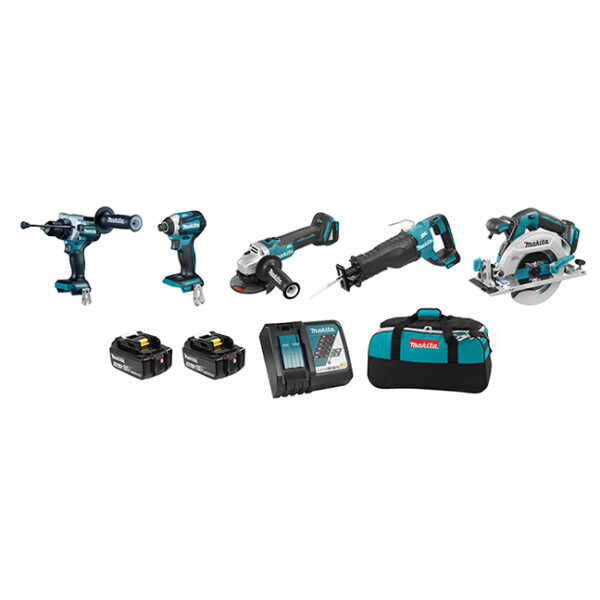

Makita DLX5077TX1 18V 5.0 Ah LXT 5 Tool Combo Kit
The Makita DLX5077TX1 18V 5.0 Ah LXT 5 Tool Combo Kit includes:
- DHP486Z 1/2” Hammer Drill / Driver with Brushless Motor
- DTD154Z 1/4″ Cordless Impact Driver With Brushless Motor
- DGA504Z 5″ Cordless Angle Grinder with Brushless Motor
- DHS680Z 6-1/2″ Cordless Circular Saw with Brushless Motor
- DJR187Z Cordless Reciprocating Saw with Brushless Motor
- 2 – BL1850B 18V 5.0 Ah Li-Ion Batteries (196675-2)
- DC18RC Rapid Charger
- Tool Bag (831284-7)
1. DHP486Z 18V LXT 1/2″ Cordless Hammer Drill with Brushless Motor:
Maximum capacities:
- Concrete:
-
-
- 5/8″ (16 mm)
-
-
- Steel:
-
-
- 1/2″ (13 mm)
-
-
- Wood with:
-
-
- Auger bit: 2″ (50 mm)
- Self-feed bit: 3″ (76 mm)
- Hole saw: 6″ (152 mm)
-
-
Features:
- Brushless DC motor:
-
-
- High power to weight and size ratio
- Generates less heat buildup
- Ideal for prolonged use in manufacturing / production applications
-
-
- eXtreme Protection Technology (XPT):
-
-
- Maximizes protection against dust, debris and liquids
- Optimizes performance in extreme conditions
-
-
- Battery protection system:
-
-
- Provides over-discharge, temperature and circuit protection
- Enhances performance, battery cycle life and overall battery life
-
-
- 21 clutch settings + drill mode deliver up to 1,150 in. lbs. of torque
- All metal gears for more efficient power transmission
- Ultra-compact design (only 7″ long)
- Dual LED job lights with afterglow feature
- Ergonomic soft rubber grip design:
-
-
- For vibration absorption and comfortable operation
- Features re-contoured rear grip portion and ribbed grip for improved hold
-
-
Specifications:
- Battery voltage & chemistry: 18V Lithium-Ion
- No load speed ranges:
-
-
- Low: 0 to 550 RPM
- High: 0 to 2,100 RPM
-
-
- Blows Per Minute ranges:
-
-
- Low: 0 to 8,250 BPM
- High: 0 to 31,500 BPM
-
-
- Maximum torque: 1,150 in-lbs (130 Nm)
- Vibration level: 8.0 m/s²
- Noise level: 84 dB(A)
- Overall length: 7″ (178 mm)
- Net weight: 4.5 lbs (2.0 kg)
Click here for a selection of Makita drill and driver bits
2. DTD154Z 18V Brushless 1/4″ Impact Driver:
- Heavy Duty, ULTRA-COMPACT Design (Just 4-5/8″ Long)
- Variable 3-Speed and Reversible
- eXtreme Protection Technology (XPT) maximizes protection against dust, debris and liquids and optimizes performance
- 3 stage impact power selection + TEK mode prevents over tightening of fasteners
- TEK mode reduces impact power during final stages of fastener seating
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup – ideal for prolonged use applications in manufacturing / production
- Battery protection system with over-discharge, temperature and current protection enhances performance, battery cycle life and overall battery life
- Twin LED job lights with pre-glow and afterglow
- Vibration absorbing ergonomic soft rubber grip provides superior operator comfort and control
- Battery voltage and chemistry: 18 volt Lithium ion
- Shank size and type: 1/4″ Hex
- Low No load speed range: 0 to 1,100 RPM
- Medium No load speed range: 0 to 2,100 RPM
- High No load speed range: 0 to 3,600 RPM
- Low Impacts per minute range: 0 to 1,100 IPM
- Medium Impacts per minute range: 0 to 2,600 IPM
- High Impacts per minute range: 0 to 3,800 IPM
- Maximum fastening torque: 1,550 in-lbs (175 Nm)
- Overall length: 4-5/8″ (117 mm)
- Net weight: 2.2 lbs (0.9 kg)
3. DGA504Z 18V 5″ Brushless Grinder:
- Powerful, efficient Brushless DC motor
- Convenient slide-type switch
- Automatic Torque Drive optimizes performance by changing cutting speed to suit load condition
- Battery fuel gauge for easy monitoring of battery condition
- Gear housing rotates allowing operator adjustment to the most suitable position for the application
- Anti-restart safety function prevents accidental start-up
- Cuts concrete up to 3/4″ in depth
- XPT (eXtreme Protection Technology) enhances dust and drip resistance to optimize performance
- Runs on Lithium-Ion batteries
- No load speed: 8,500 RPM
- Overall length: 14-1/4″
- Net weight: 5.5 lbs
Looking for cutoff wheels or grinding discs? Click here.
4. DHS680Z 6-1/2″ 18V Brushless Circular Saw:
- Maximum cutting depth capacities:
-
-
- 2-1/4″ (57 mm) at 0º
- 1-5/8″ (41 mm) at 45º
- 1-7/16″ (37 mm) at 50º
-
-
- Makita’s first BRUSHLESS circular saw – Powered by Makita’s Lithium-Ion battery system
- Brushless DC motor delivers a high power-to-weight and power-to-size ratio
- Automatic Speed Change™ maximizes performance and efficiency in heavy duty cutting applications
- 2-Stage Safety Trigger to prevent accidental start up
- Electric Brake for greater safety – stops the blade 3 to 5 seconds after trigger release
- Soft Start eliminates start up shock by gradually increasing speed
- Ultra-lightweight magnesium base plate, blade casing and safety cover
- Large depth and bevel scales have rubberized levers – greater accuracy and convenience
- LED work light and blower keep the cut line visible
- Built-in battery fuel gauge with LED indicator for monitoring charge level
- Convenient built-in tool hanger
- Comfortable, vibration-absorbing, ergonomic soft rubber grip
- Enlarged dust nozzle provides dust extraction capability when dust-free operation is required
- Battery voltage & chemistry: 18 volt, Lithium-Ion
- Blade diameter: 6-1/2″ (165 mm)
- Arbor: 5/8″ (15.88 mm)
- Bevel capacity: 0º to 50º with positive stop at 45º
- No load speed: 5,000 RPM
- Vibration level: 2.5 m/s²
- Noise level: 83 dB(A)
- Overall length: 13-3/4″ (350 mm)
- Net weight: 6.0 lbs (2.7 kg)
5. DJR187Z 18V Brushless Reciprocating Saw:
- Brushless DC motor:
-
-
- High power to weight and size ratio
- Generates less heat buildup:
- Ideal for use in prolonged manufacturing / production applications
-
-
- eXtreme Protection Technology (XPT):
-
-
- Maximizes protection against dust, dirt and debris and optimizes performance
-
-
- Faster cutting speed and longer stroke length maximize cutting efficiency
- 2 speed settings provides ideal settings for wood or metal cutting applications
- Vertical crank mechanism minimizes blade deflection and minimizes vibration
- Fixed shoe maximizes stability during heavy duty cutting applications
- Large 2-finger trigger switch optimizes user control and comfort
- Vibration absorbing ergonomic soft rubber grip provides superior operator comfort and control
- Tool-free blade changes
- Variable speed
- Retractable sky hook allows tool be hung on rafters, pipes or scaffolding
- LED job light with pre-glow and after-glow
- Battery voltage and chemistry: 18 volt lithium ion
- Maximum cutting capacity – Pipe: 5-1/8″ (130 mm)
- Maximum cutting capacity – Wood with 11-3/4″ blade: 10″ (255 mm)
- Strokes per minute ranges: 0 to 2,800 SPM and 0 to 3,000 SPM
- Stroke length: 1-1/4″ (32 mm)
- Vibration level: 16.5 m/s²
- Noise level: 84 dB(A)
- Overall length: 17-1/4″ (439 mm)
- Tool weight: 6.9 lbs (3.1 kg)
Looking for Makita reciprocating saw blades? Click here.
